Installation Procedure

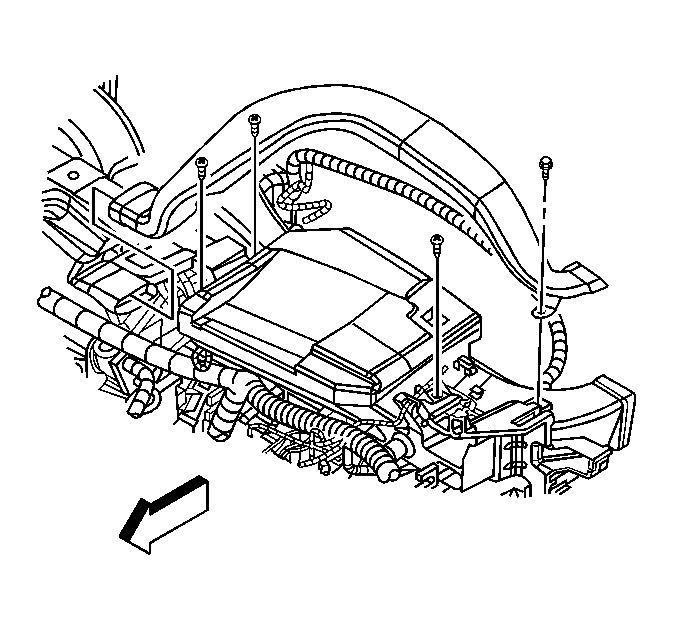

    Fig 1: View Of Head Up Display
    GM1385970Courtesy of GENERAL MOTORS COMPANY
  1. Connect the electrical connectors.
    2. CAUTION:

    Refer to Fastener Caution .

  2. Install the screws securing the heads up display to the I/P.

    Tighten

    Tighten the screws to 2 N.m (18 lb in).

  3. Install the I/P retainer. Refer to Instrument Panel Retainer Replacement .
