Installation Procedure

    Fig 1: View Of Starter Motor
    GM887715Courtesy of GENERAL MOTORS COMPANY
  1. Install the starter motor.
    2. CAUTION:

    Refer to Fastener Caution .

  2. Install the starter motor mounting bolts and tighten to 50 N.m (37 lb ft).

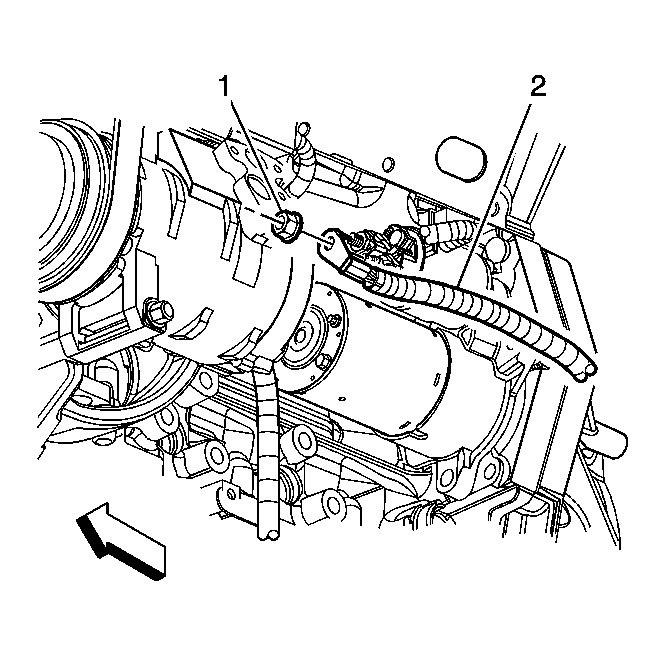

    3. Fig 2: View Of Starter Terminal Nut & Battery Positive Cable
    GM887713Courtesy of GENERAL MOTORS COMPANY
  3. Install the battery positive cable (2) to the starter and install the starter terminal nut (1) and tighten to 13 N.m (115 lb in).

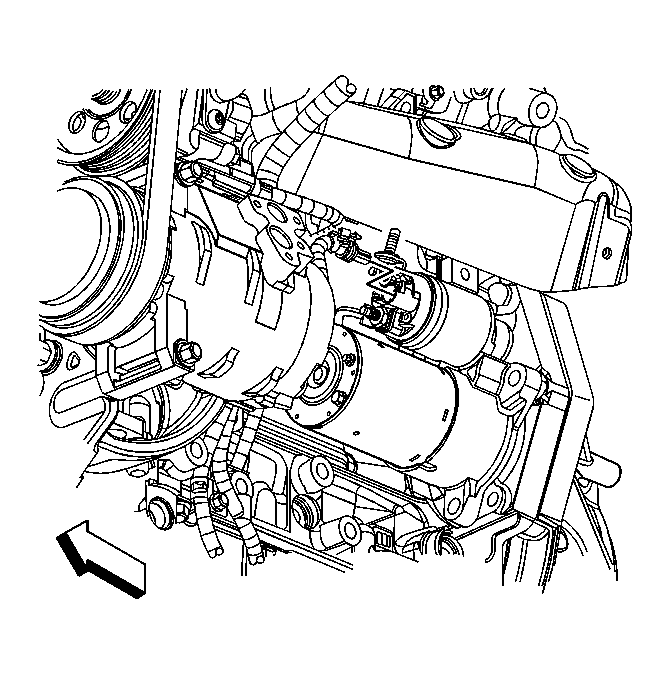

    4. Fig 3: View Of Starter Solenoid Electrical Connector
    GM887710Courtesy of GENERAL MOTORS COMPANY
  4. Install the electrical connector to the starter solenoid.
  5. Install the left catalytic converter. Refer to Catalytic Converter Replacement - Left Side .
