Installation Procedure

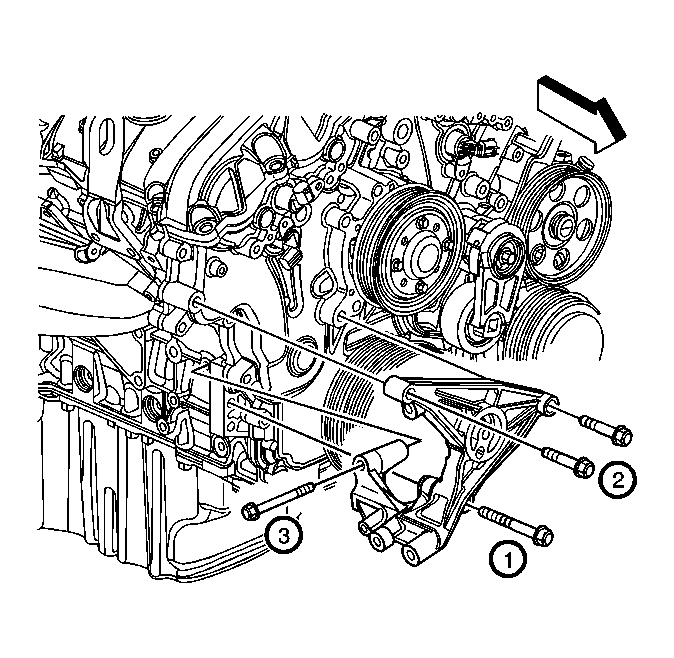

    Fig 1: Identifying Generator Bracket Retaining Bolts & Bracket
    GM887707Courtesy of GENERAL MOTORS COMPANY
  1. Install the generator bracket.
  2. Install the generator bracket bolts.
    3. CAUTION:

    Refer to Fastener Caution .

  3. Tighten the generator bracket bolts (1, 2) to 50 N.m (37 lb ft).
  4. Tighten the generator bracket bolt (3) to 23 N.m (17 lb ft).
  5. Install the belt tensioner. Refer to Water Pump and Generator Belt Tensioner Replacement .
  6. Install the coolant inlet pipe lower bolt from the generator bracket.
  7. Install the generator. Refer to Generator Replacement (LLT) .
