Removal Procedure

  1. Remove the air inlet grille. Refer to Air Inlet Grille Panel Replacement .
    2. Fig 1: View Of Battery Retainer Bolt
    GM1296795Courtesy of GENERAL MOTORS COMPANY
  2. Remove the battery from the vehicle. Refer to Battery Replacement (Top Post) , Battery Replacement (Side Post) .

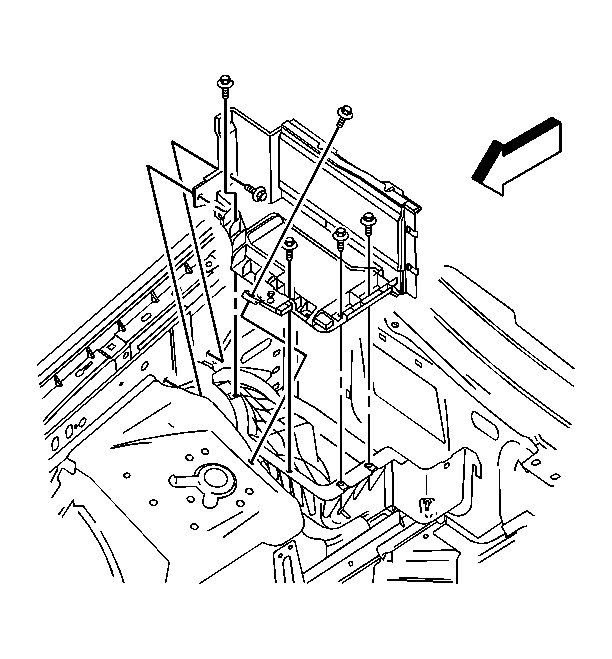

    3. Fig 2: View Of Battery Tray
    GM1296149Courtesy of GENERAL MOTORS COMPANY
  3. Remove the bolts from the battery tray.
  4. Remove the battery tray from the vehicle.
