Installation Procedure

    Fig 1: View Of Battery Heat Shield
    GM1296794Courtesy of GENERAL MOTORS COMPANY
    NOTE:

    Ensure the openings in the heat shield are aligned with the battery terminal bosses.

  1. Position the battery heat shield downward over the battery.
    2. Fig 2: View Of Battery Heat Shield Locking Tabs
    GM1296793Courtesy of GENERAL MOTORS COMPANY
  2. Ensure that the heat shield locking tabs (1) are engaged.

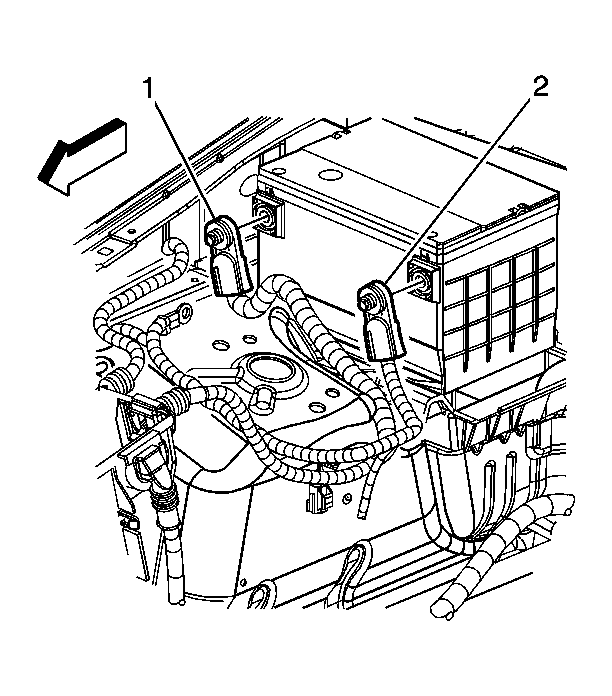

    3. Fig 3: View Of Battery Positive & Negative Cables
    GM1296154Courtesy of GENERAL MOTORS COMPANY
  3. Install the air inlet grille panel. Refer to Air Inlet Grille Panel Replacement .
    4. CAUTION:

    Refer to Fastener Caution .

  4. Connect the battery positive cable (1) to the battery and tighten to 17 N.m (13 lb ft).
  5. Connect the battery negative cable (2). Refer to Battery Negative Cable Disconnection and Connection (With Side Post) , Battery Negative Cable Disconnection and Connection (With Top Post) .
