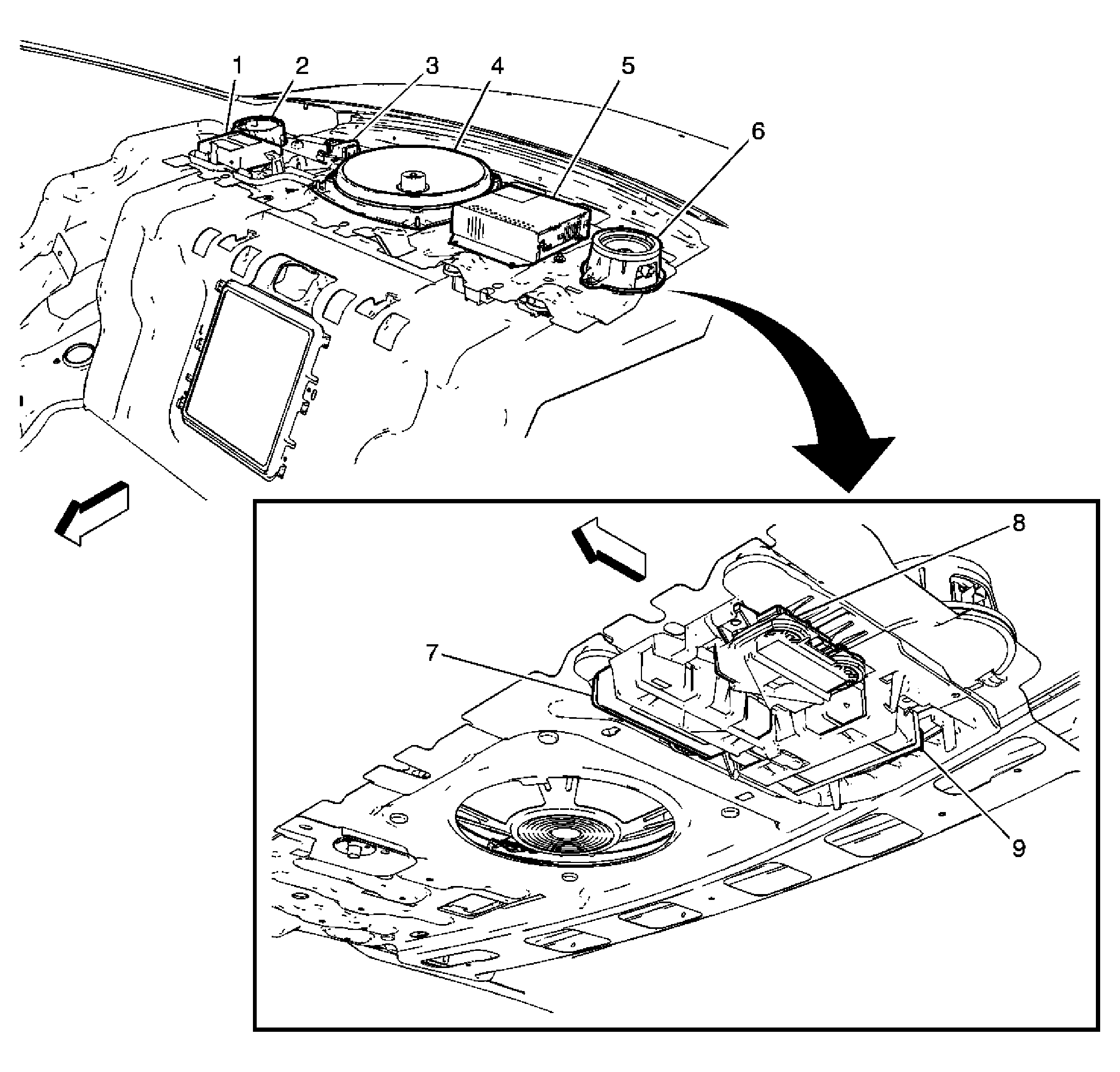

Rear Shelf Components
Rear Shelf Components
| Component Name | Callout |
|---|---|
| Digital Radio Receiver (U2K) | 1 |
| Speaker - Right Rear Compartment (UY5) | 2 |
| Courtesy Lamp - Rear Compartment | 3 |
| Speaker - Subwoofer | 4 |
| TV Antenna Module (YQ6/YQ7) | 5 |
| Speaker - Left Rear Compartment (UY5) | 6 |
| Rear Integration Module (RIM) | 7 |
| Rear Object Sensor Control Module | 8 |
| Remote Control Door Lock Receiver (RCDLR) | 9 |
