Power Seat Switch Replacement

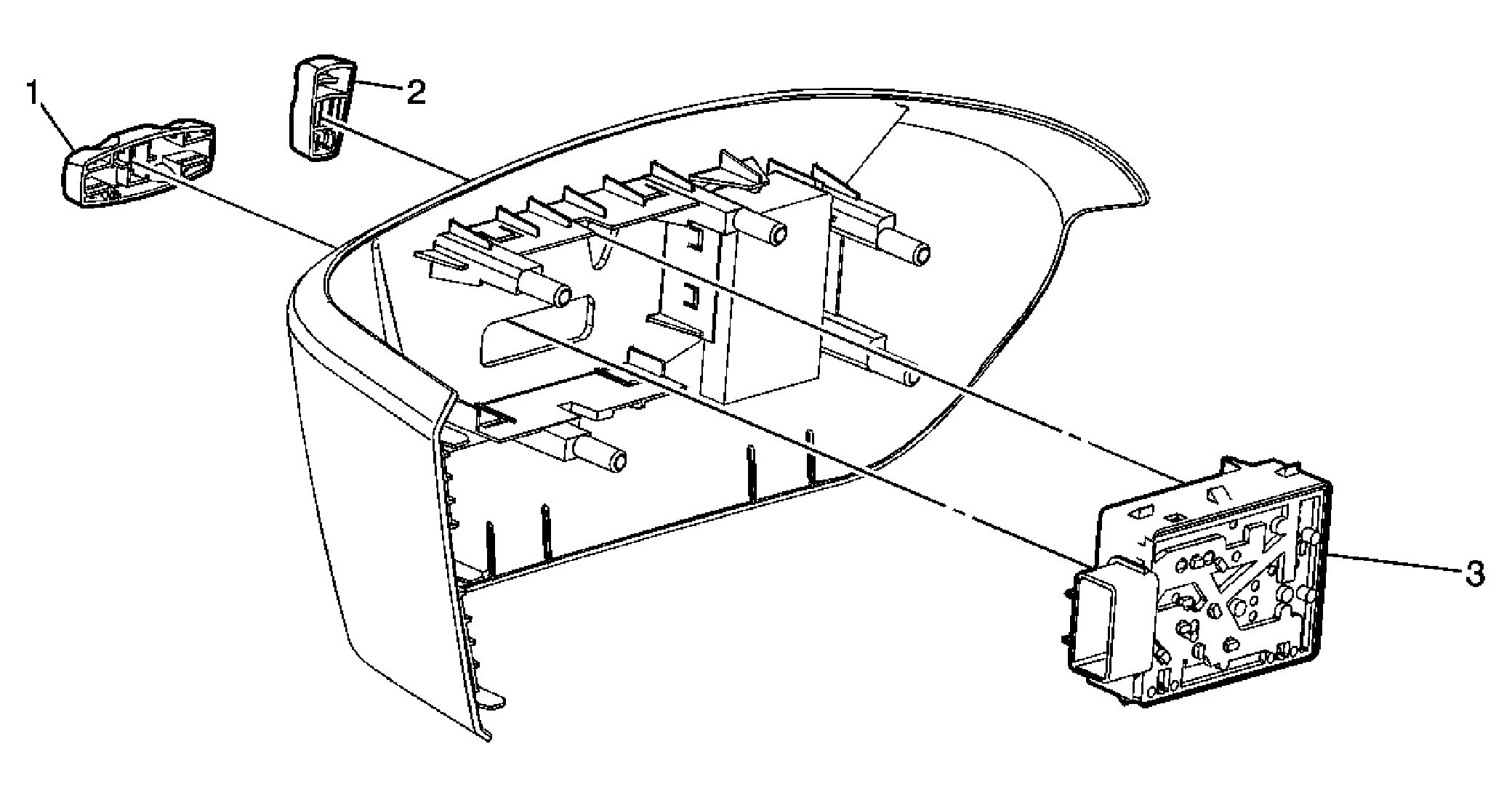

Fig 1: Power Seat Switch
GM1702634Courtesy of GENERAL MOTORS COMPANY
Power Seat Switch Replacement

Callout Component Name
Preliminary Procedure
Remove the seat adjuster switch bezel. Refer to Driver or Passenger Seat Adjuster Switch Bezel Replacement .
1 Front Seat Adjuster Switch Knob
TIP:  Pull the knob away from the seat switch bezel to remove.
2 Front Seat Power Lumbar Switch Knob
TIP:  Pull the knob away from the seat switch bezel to remove.
3 Front Seat Adjuster Switch
TIP:  Use a small flat bladed tool to release the adjuster switch from the seat switch bezel.
