Hood Ajar Indicator Switch Replacement
Hood Ajar Indicator Switch Replacement

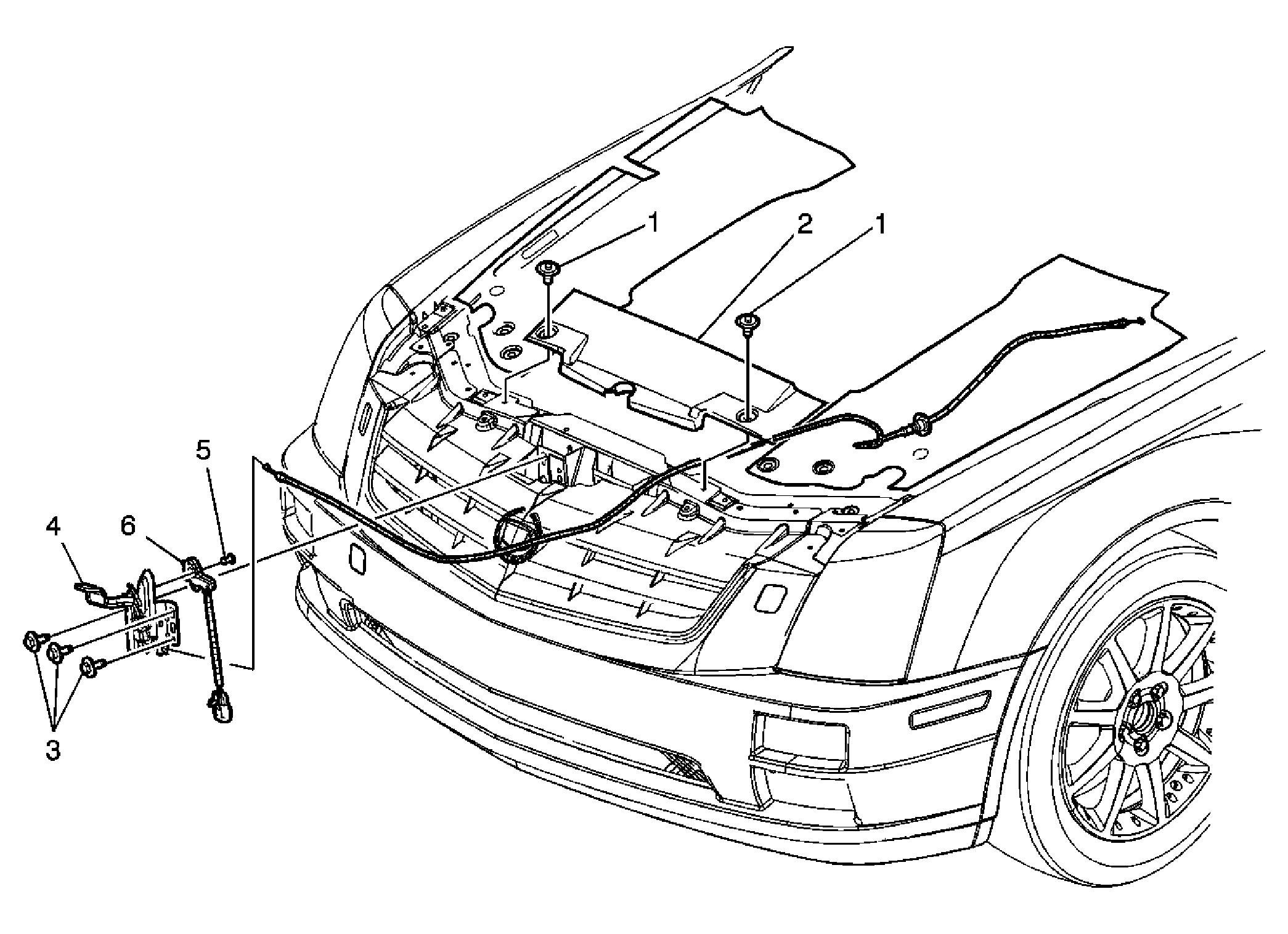

| Callout | Component Name |
|---|---|
| 1 | Front Compartment Sight Shield Retainer (Qty: 2) |
| 2 | Radiator Support Sight Shield Assembly |
| 3 | Hood Primary and Secondary Latch Bolt (Qty: 3)
CAUTION:
Refer to Fastener Caution . Tighten 9 N.m (80 lb in) |
| 4 | Hood Primary and Secondary Latch Assembly TIP: Remove the hood release cable from the latch. |
| 5 | Hood Ajar Rivet |
| 6 | Hood Ajar Switch |
