Engine Splash Shield Replacement

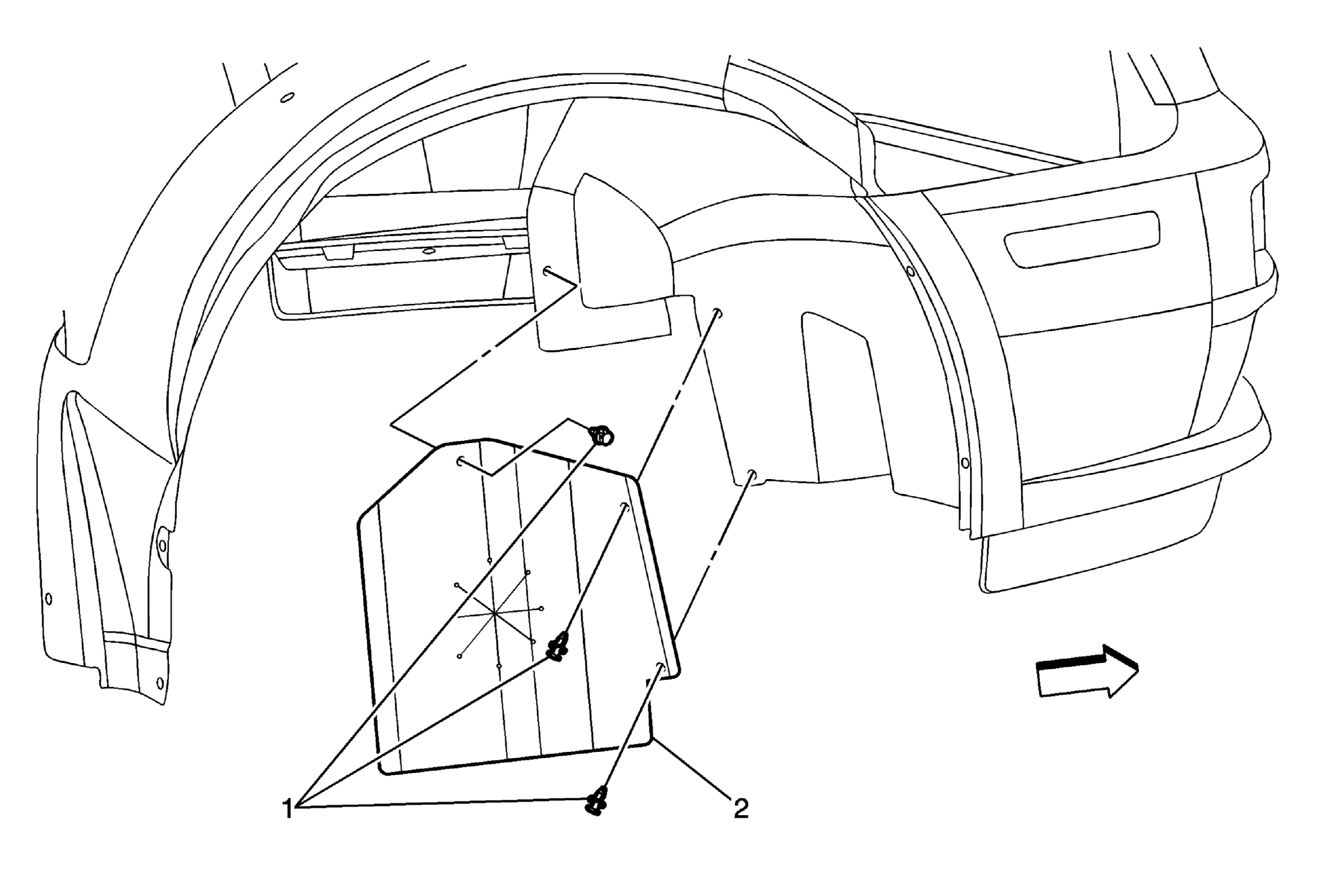

Fig 1: Engine Splash Shield & Retainers
GM1831286Courtesy of GENERAL MOTORS COMPANY
Engine Splash Shield Replacement

Callout Component Name
Preliminary Procedure
Remove the tire/wheel assembly. Refer to Tire and Wheel Removal and Installation .
1 Engine Splash Shield Plastic Retainer (Qty: 3)
2 Engine Splash Shield
