Traffic Information Receiver Module (VICS)- Japan Only

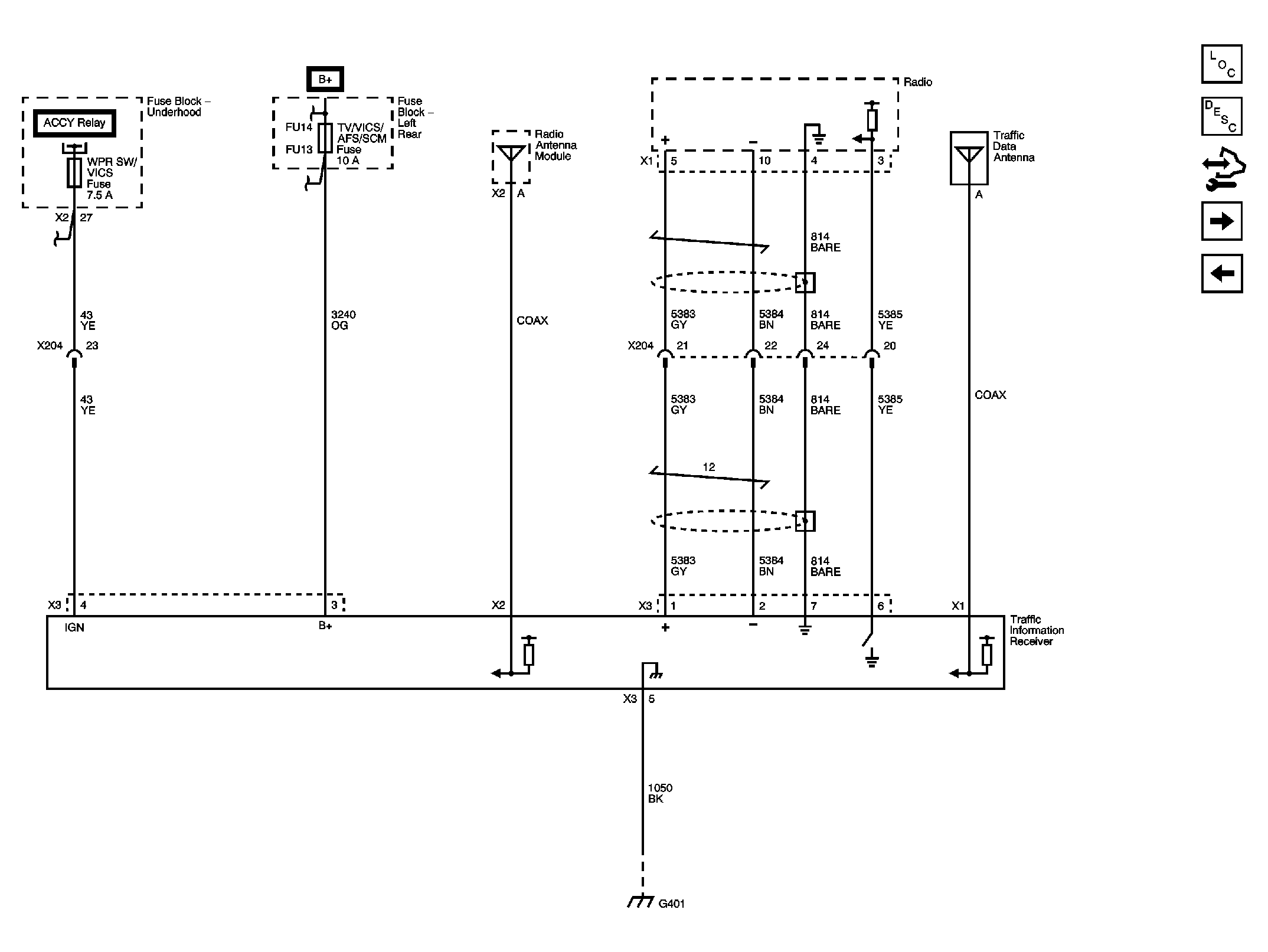

Fig 1: Traffic Information Receiver Module (VICS) - Japan Only Wiring Schematic
GM2411124Courtesy of GENERAL MOTORS COMPANY
