Release Systems Wiring Schematics

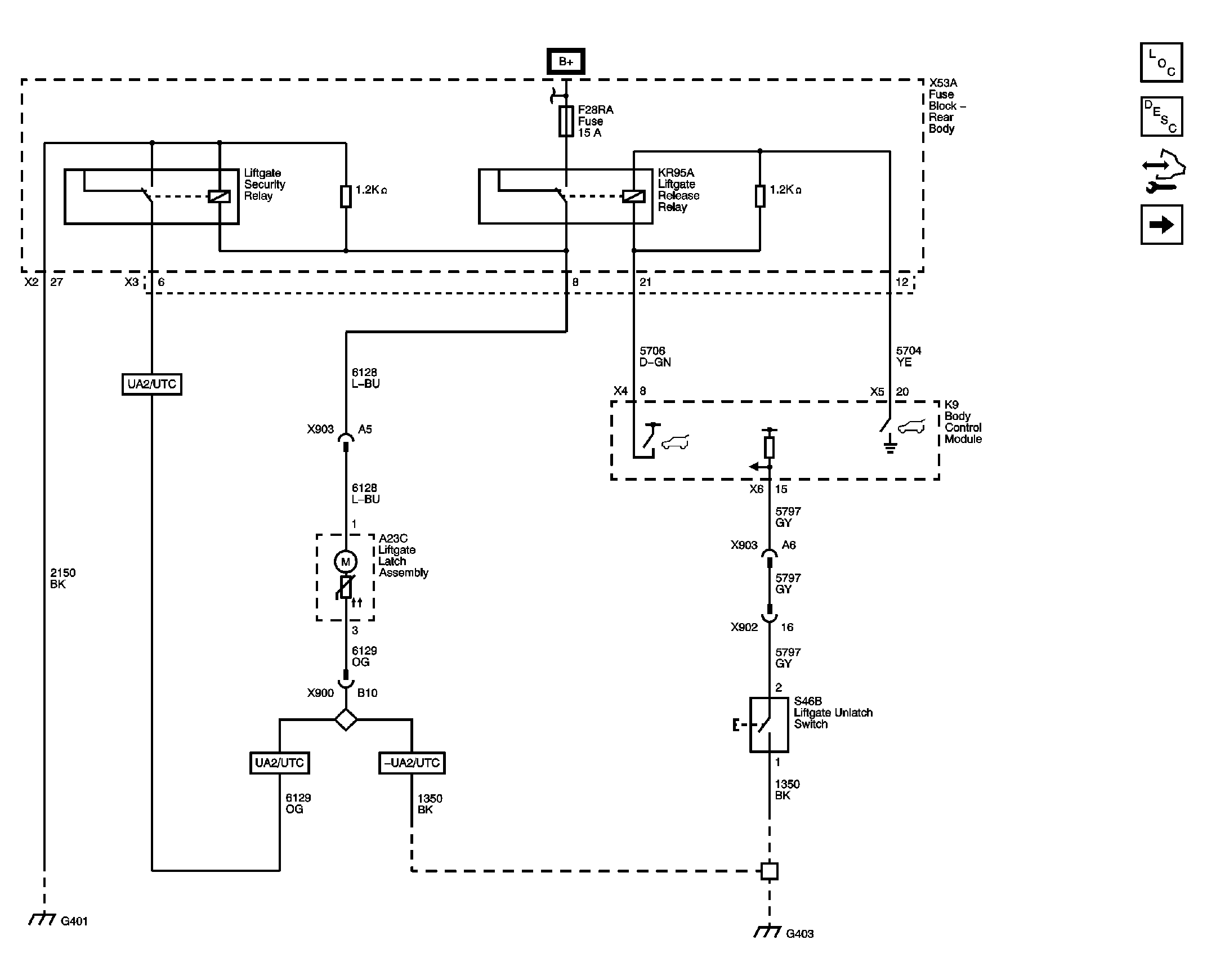

Fig 1: Liftgate Release Controls Wiring Schematic without TB5
GM2423512Courtesy of GENERAL MOTORS CORP.

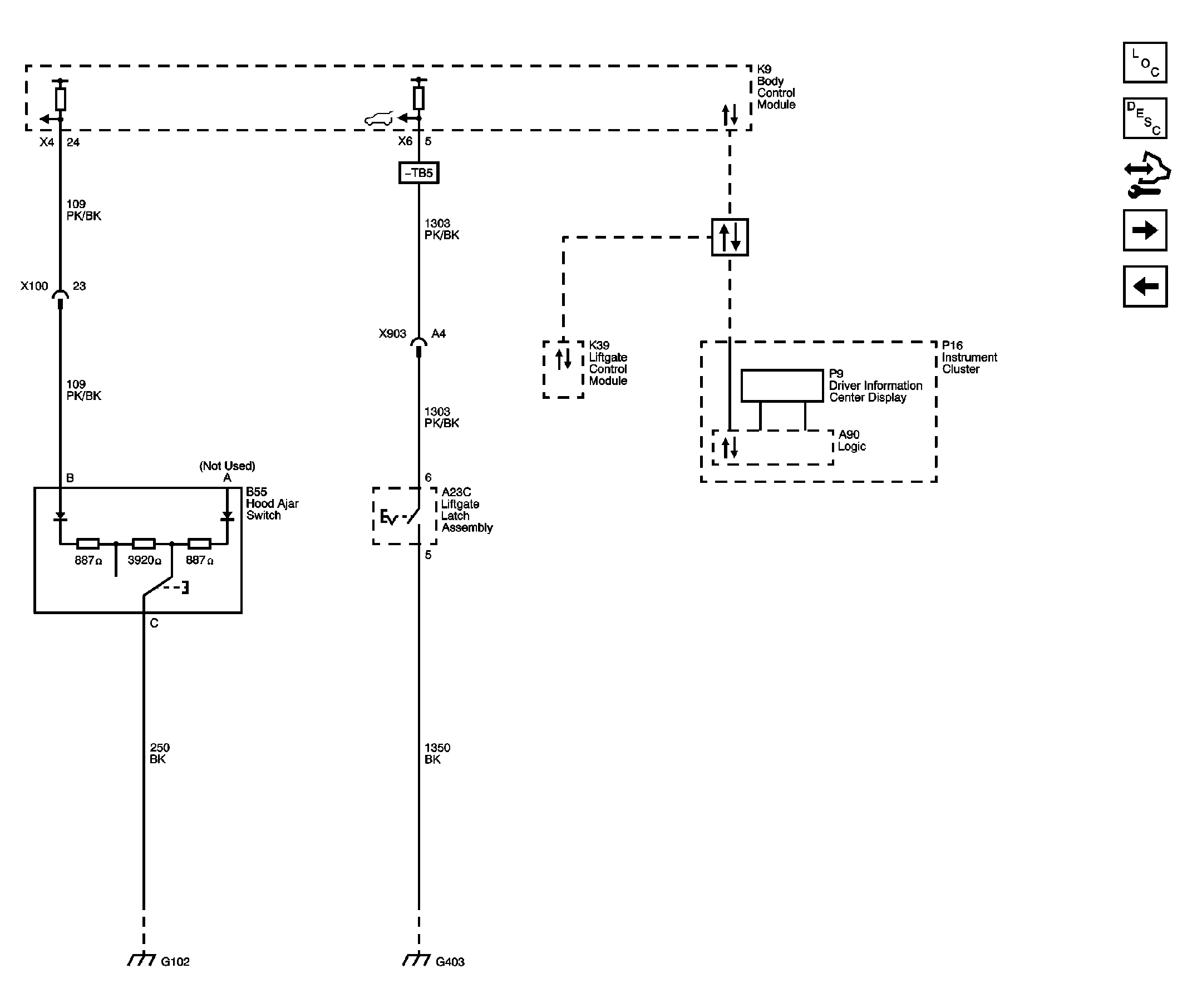

Fig 2: Liftgate and Hood Ajar Switches Wiring Schematic
GM2423513Courtesy of GENERAL MOTORS CORP.

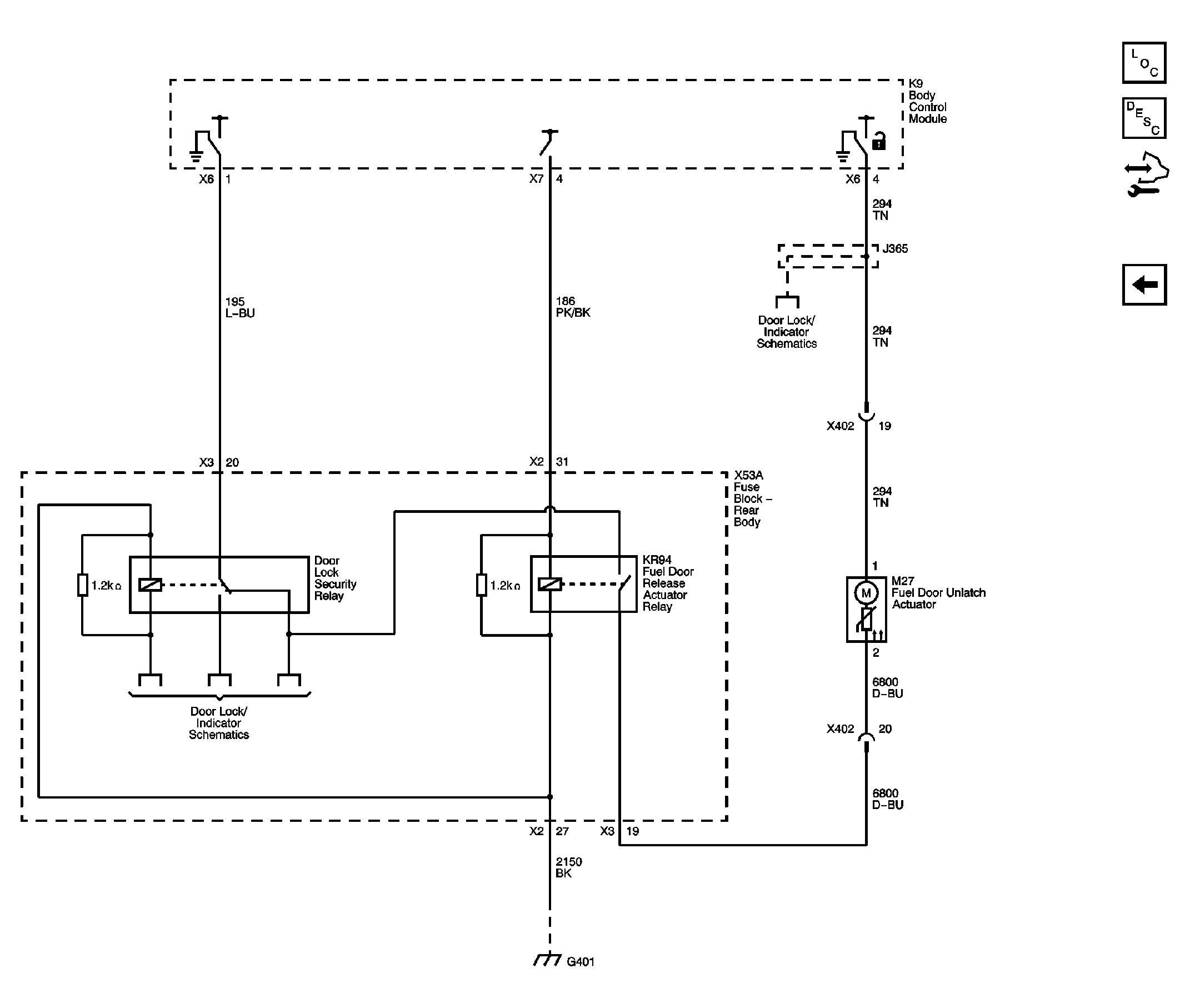

Fig 3: Fuel Door Release Wiring Schematic NO8
GM2423515Courtesy of GENERAL MOTORS CORP.
