Video System Wiring Schematics

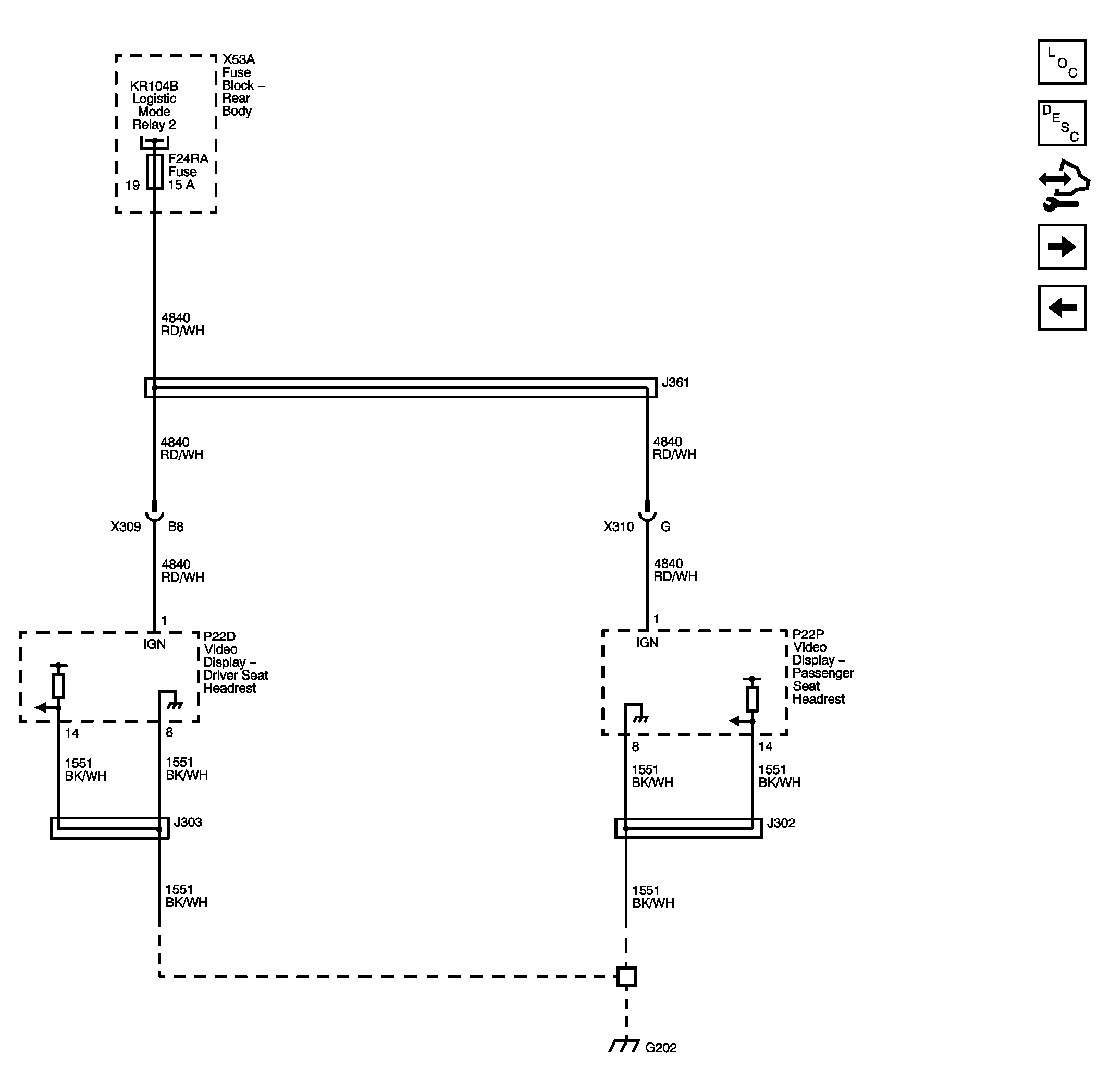

Fig 1: Headrest Displays Power and Ground Wiring Schematic

Courtesy of GENERAL MOTORS CORP.

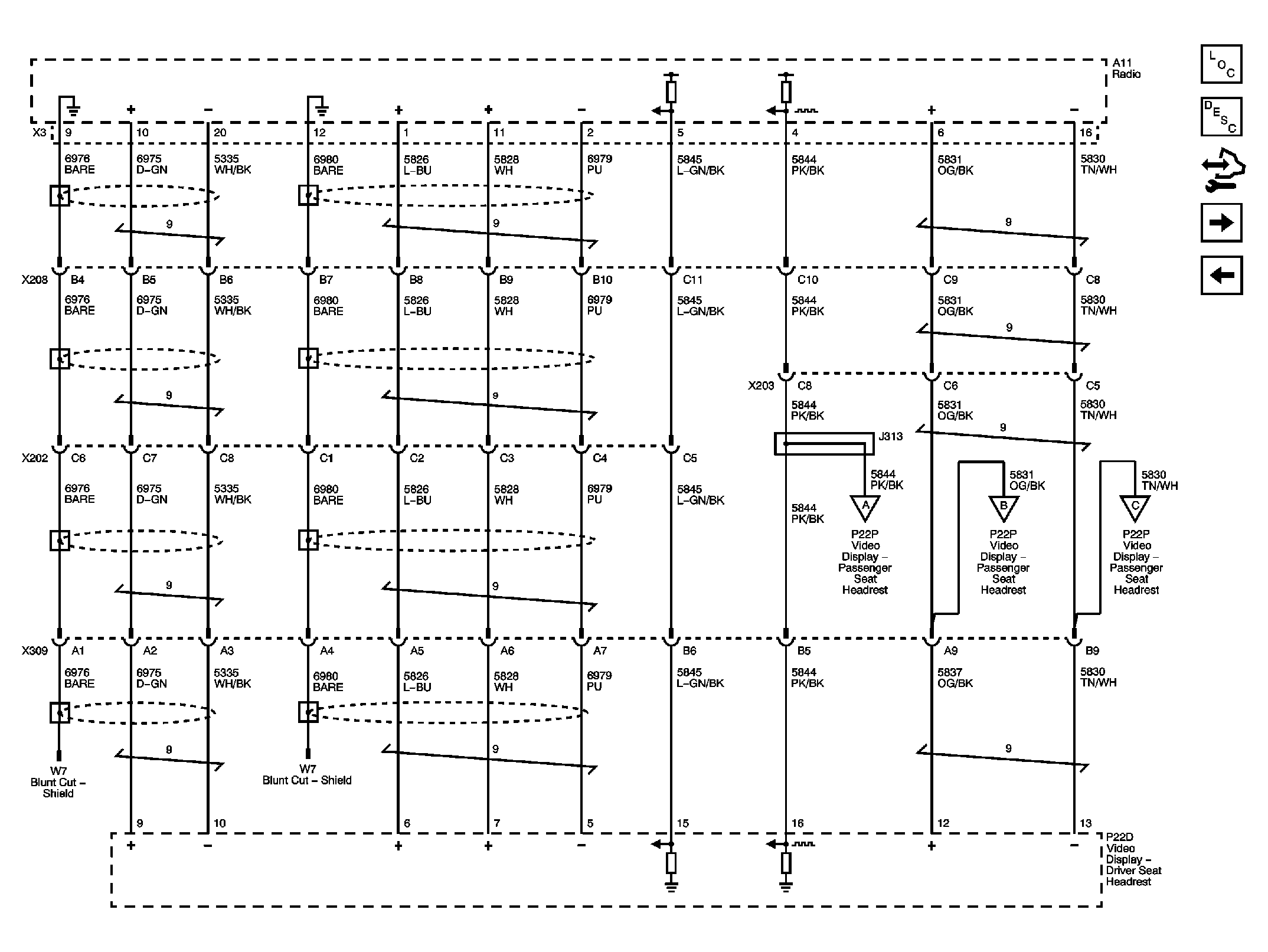

Fig 2: Driver Headrest Display Signals Wiring Schematic without ULD, with UYZ

Courtesy of GENERAL MOTORS CORP.

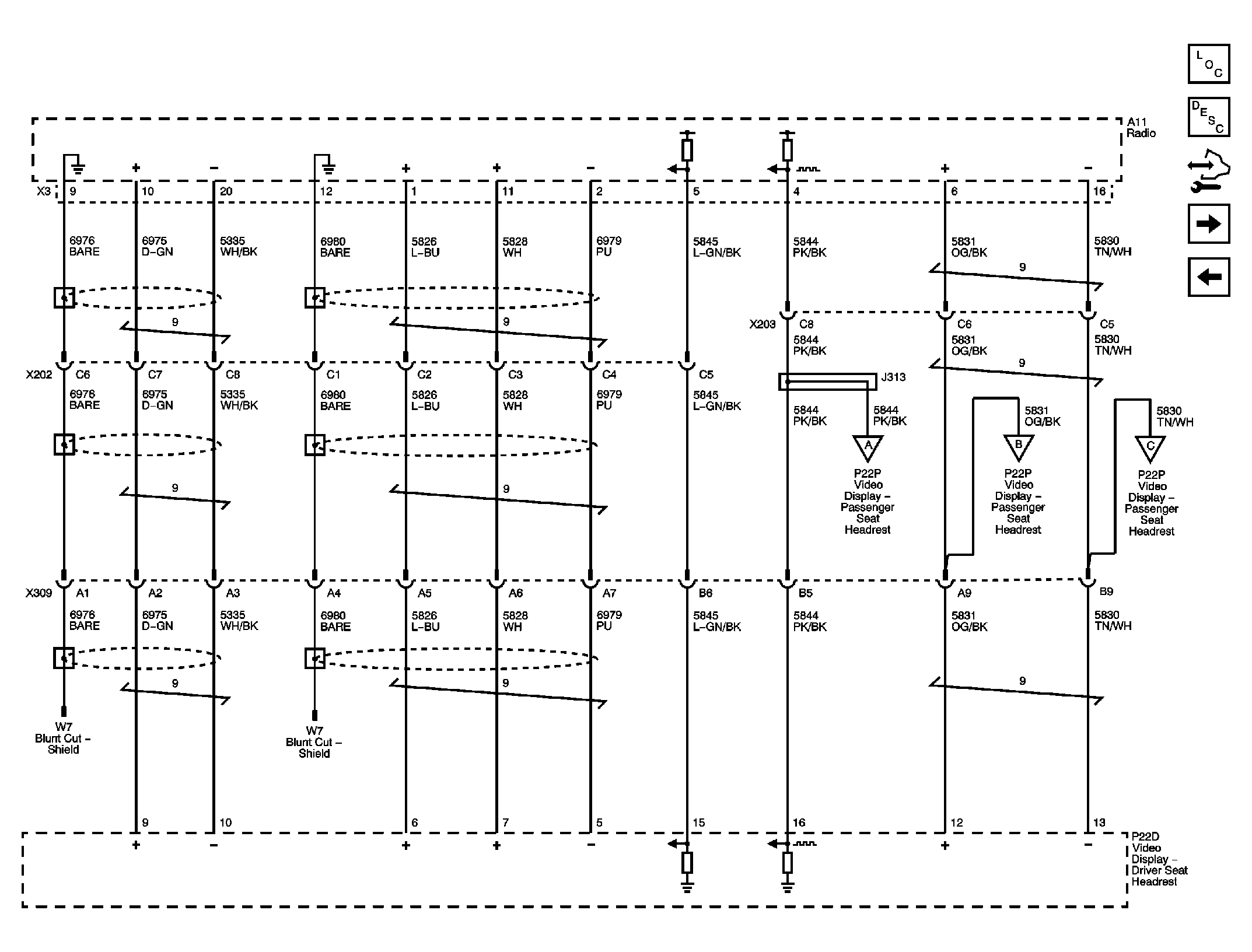

Fig 3: Driver Headrest Display Signals Wiring Schematic without ULD or UYZ

Courtesy of GENERAL MOTORS CORP.

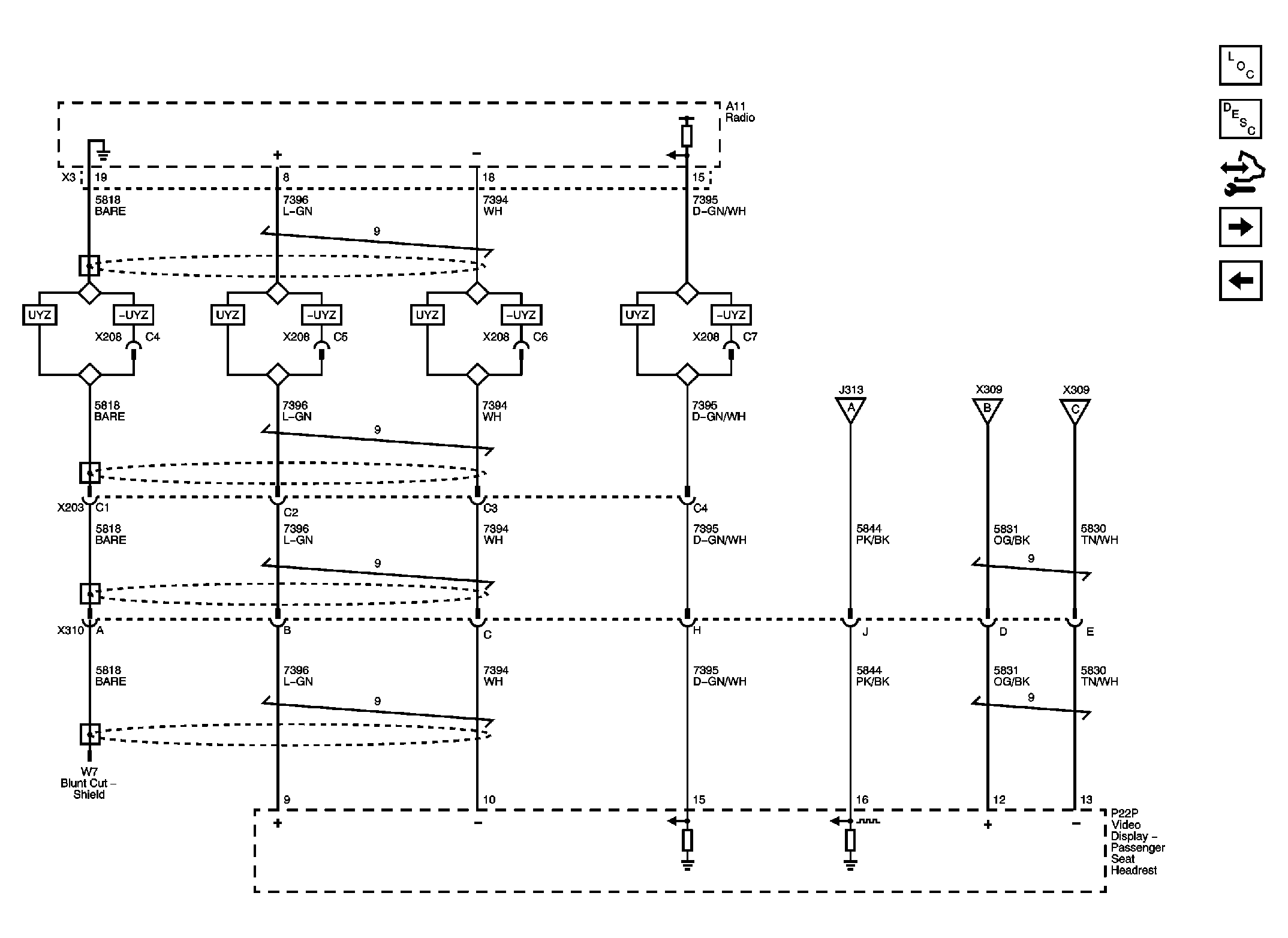

Fig 4: Passenger Headrest Display Signals Wiring Schematic

Courtesy of GENERAL MOTORS CORP.

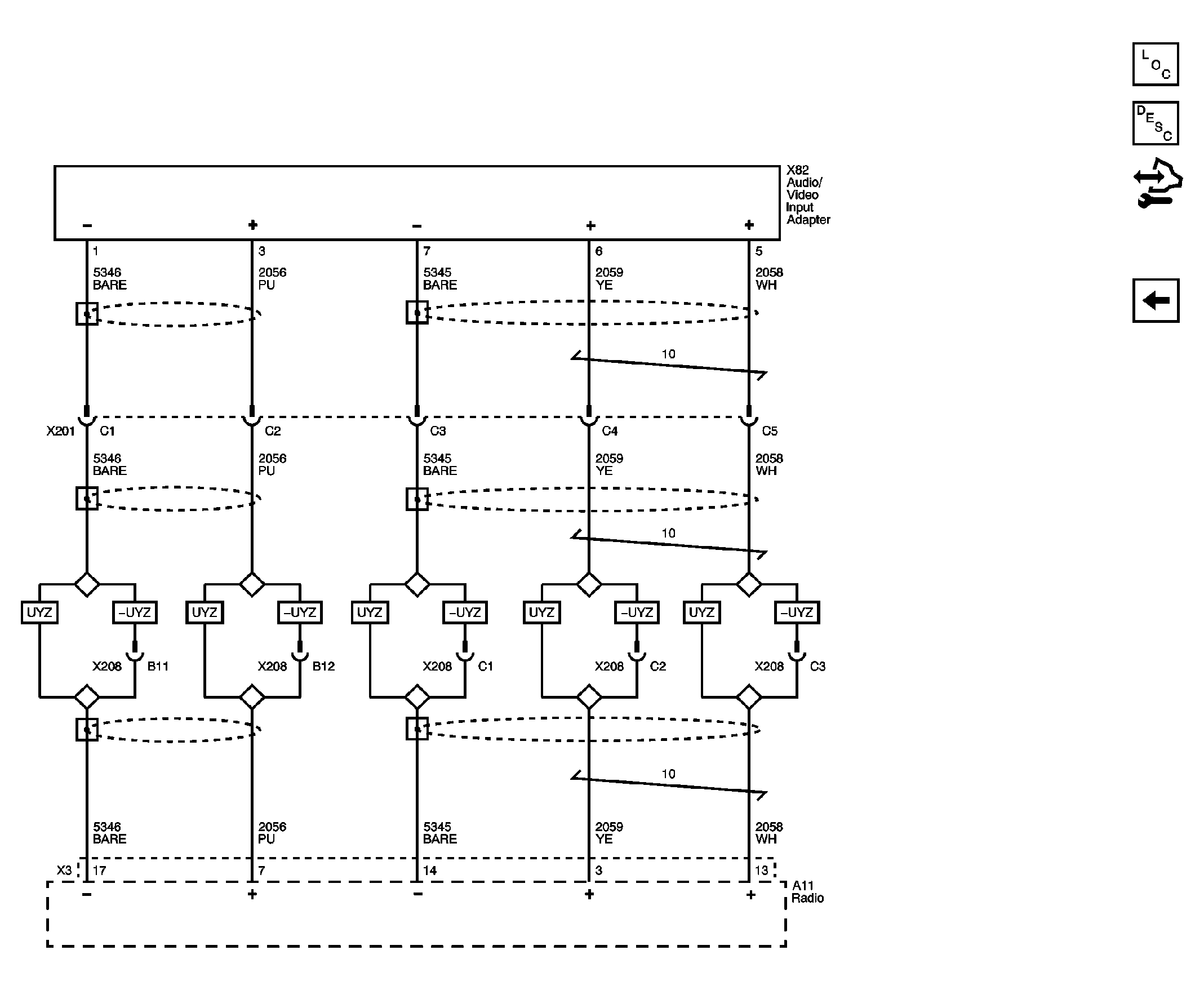

Fig 5: Video Inputs Wiring Schematic UWG

Courtesy of GENERAL MOTORS CORP.
