Case Components

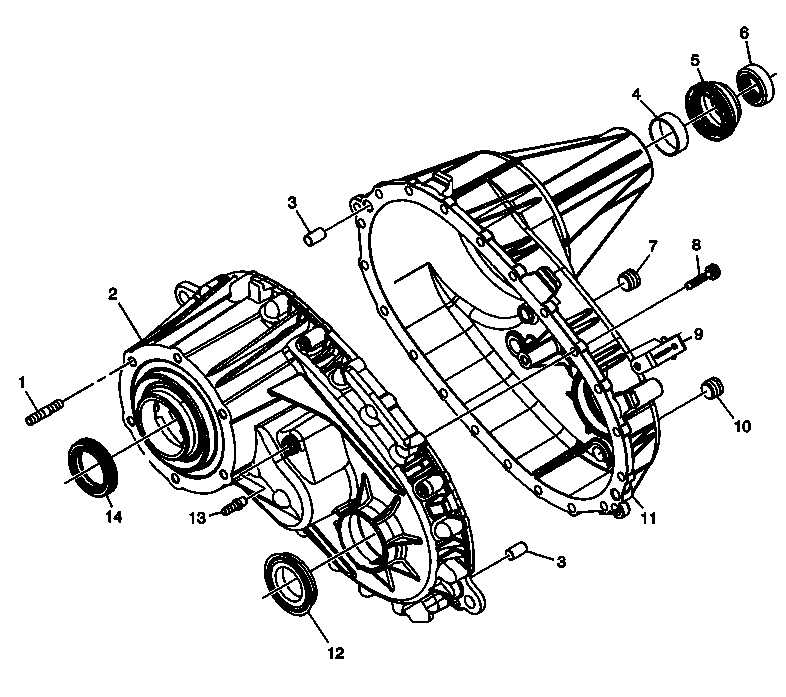

Fig 1: Case Components
GM1708323Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Adapter Stud
2 Front Case Half
3 Location Pin
3 Location Pin
4 Rear Output Shaft Bushing
5 Rear Output Shaft Seal
6 Shipping Seal
7 Fill Plug
8 Case Half Bolt
9 Wiring Harness Bracket
10 Drain Plug
11 Rear Case Half
12 Front Output Shaft Seal
13 Vent
14 Input Shaft Seal
