Retaining Ring Package

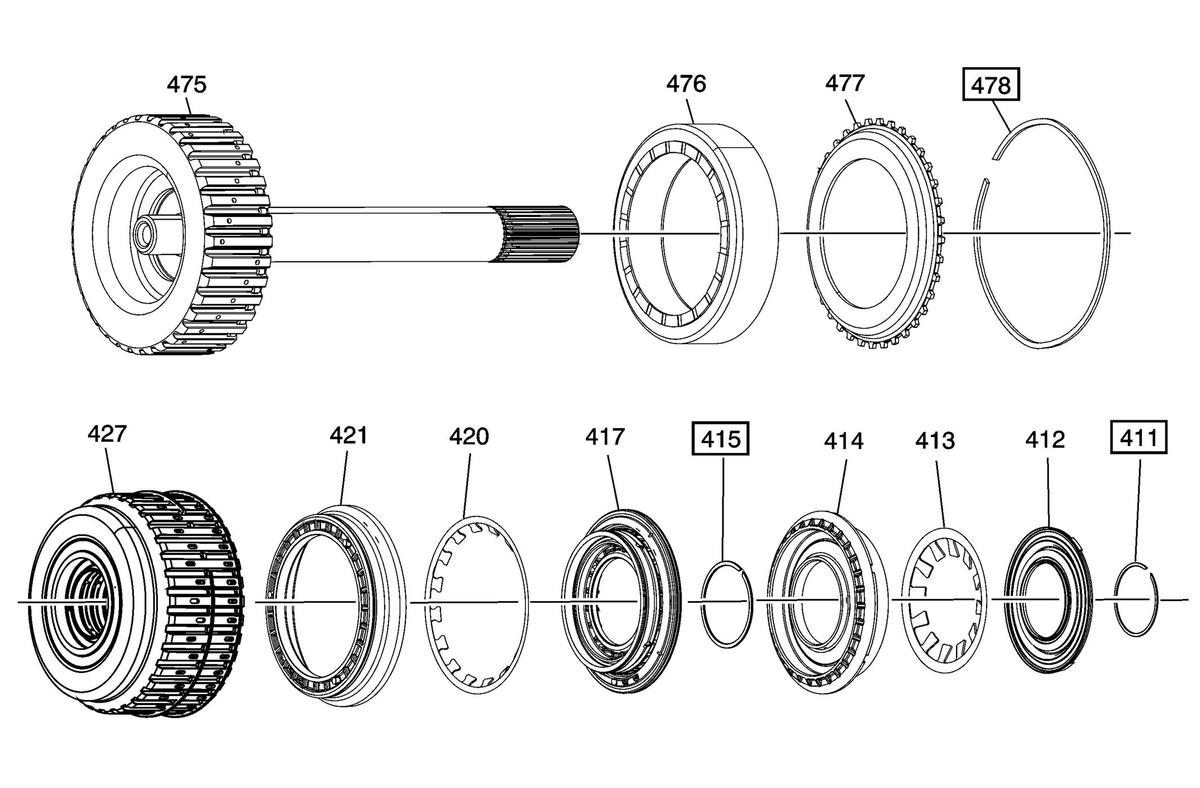

Fig 1: Retaining Ring Package

Courtesy of GENERAL MOTORS CORP.

NOTE:

Callouts with boxes around them indicate part is included in the service kit. Callouts without boxes are shown for relationship purposes only.

Callout	Quantity	Component Name
411	1	1-2-3-4 Clutch Piston Dam Retaining Ring
415	1	1-2-3-4 Clutch Piston Housing Retaining Ring
478	1	4-5-6 Clutch Dampener Retaining Ring
