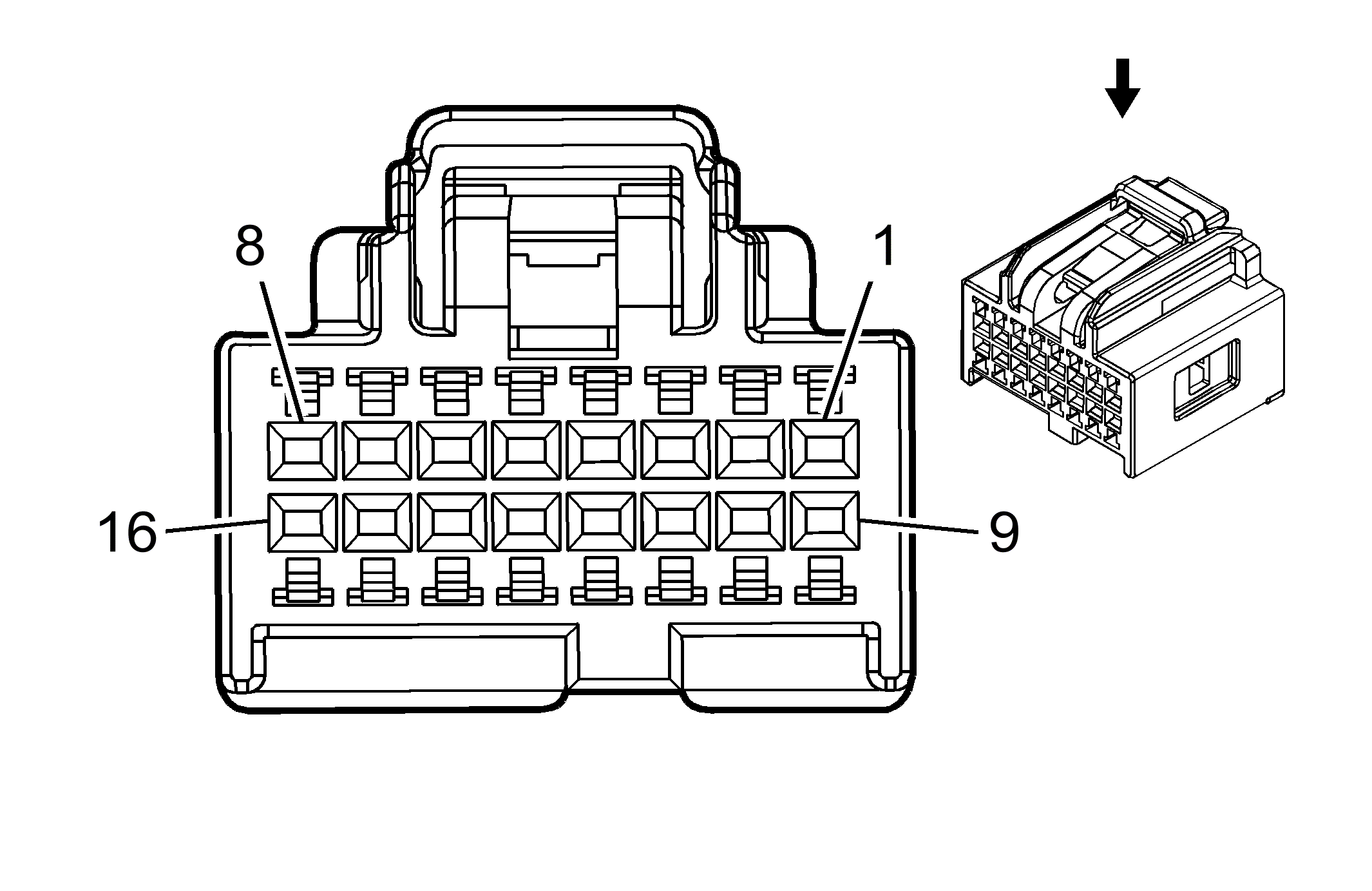

Liftgate Module (LGM) X1 (E61)
Courtesy of GENERAL MOTORS CORP. Liftgate Module (LGM) X1 (E61)
| Pin |
Wire |
Circuit |
Function |
| 1 |
0.35 D-GN |
6112 |
Power Liftgate On/Off Switch Signal |
| 2 |
- |
- |
Not Used |
| 3 |
0.35 PU |
2279 |
Liftglass Ajar Switch Signal |
| 4 |
0.35 D-GN |
5512 |
Latch Sector Switch Signal |
| 5 |
0.35 PK/BK |
6000 |
Latch Ratchet Switch Signal |
| 6 |
0.35 GY |
7000 |
Latch Pawl Switch Signal |
| 7 |
0.35 D-GN |
5060 |
Low Speed GMLAN Serial Data |
| 8 |
0.35 WH/BK |
6126 |
Liftgate Object Sensor 2 Signal |
| 9-10 |
- |
- |
Not Used |
| 11 |
0.35 PK/BK |
1303 |
Liftgate Ajar Switch Signal |
| 12 |
0.35 D-GN/WH |
5800 |
Front Liftgate Open/Close Switch Signal |
| 13 |
- |
- |
Not Used |
| 14 |
0.35 GY |
5797 |
Rear Closure Handle Switch Open Signal |
| 15 |
- |
- |
Not Used |
| 16 |
0.35 PU/WH |
5801 |
Low Reference |
Connector Part Information
- Harness Type: Body
- OEM Connector: 13783349
- Service Connector: 13578573
- Description: 16-Way F Micro HVT Series (BK)
|
Terminal Part Information
- Terminated Lead: 13575550
- Release Tool: J-38125-559
- Diagnostic Test Probe: J-35616-16 (L-GN)
- Terminal/Tray: 15445905/23
- Core/Insulation Crimp: J/J
|
