Heated Seat Element - Left Rear Cushion (KA6)

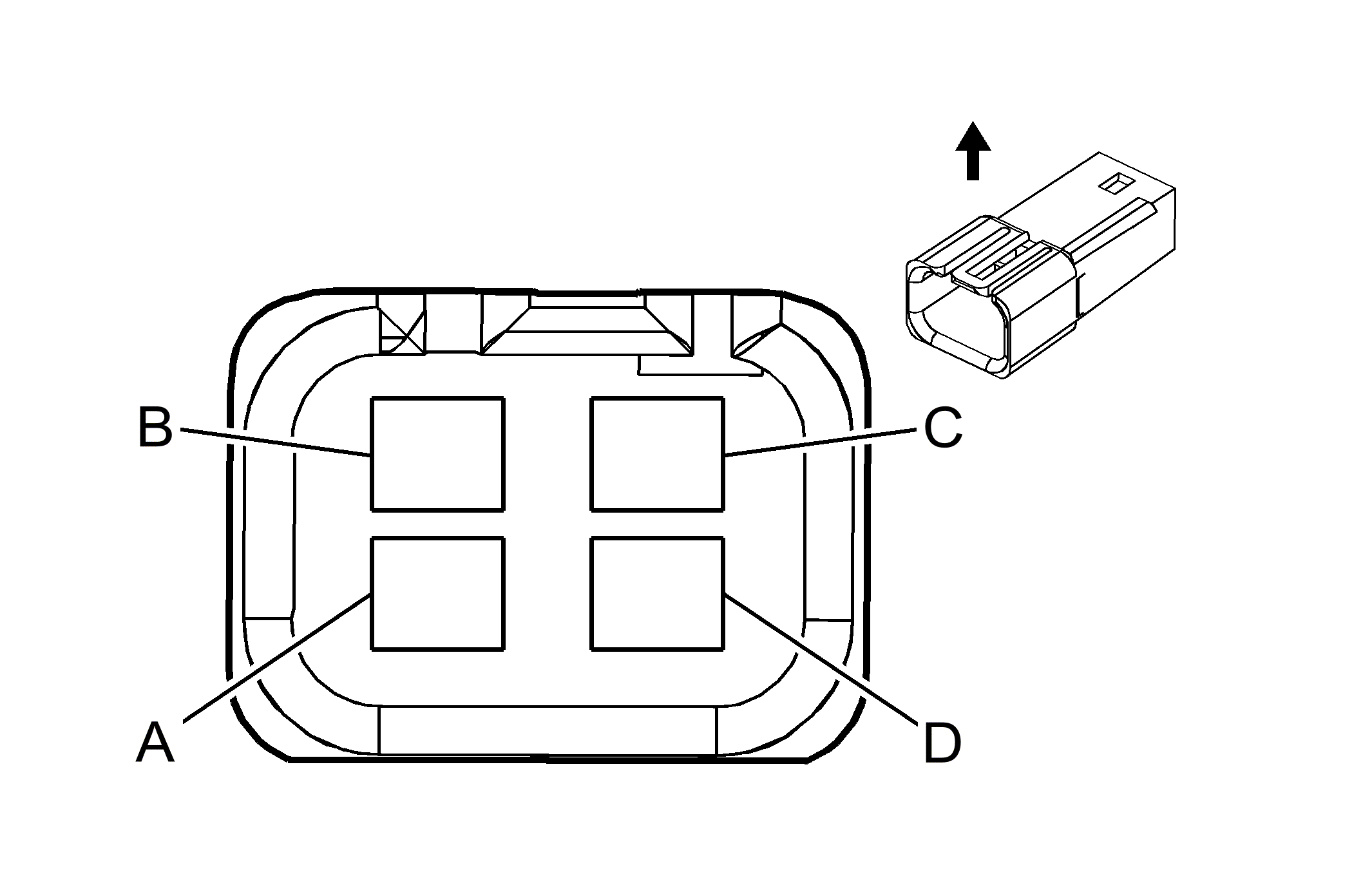

Courtesy of GENERAL MOTORS CORP. Heated Seat Element- Left Rear Cushion (KA6)
| Pin |
Wire |
Circuit |
Function |
| A |
1 PK |
2445 |
Heated Seat Element Control |
| B |
1 BN |
2295 |
Ground |
| C |
0.35 L-BU |
2299 |
Left Rear Heated Seat Sensor Signal |
| D |
0.35 D-BU |
2298 |
Low Reference |
Connector Part Information
- Harness Type: Left Rear Seat
- OEM Connector: 12066498
- Service Connector: 12085536
- Description: 4-Way F Metri-Pack 150 Series (BK)
|
Terminal Part Information
- Terminal/Tray: Service by Harness- See Part Catalog
- Core/Insulation Crimp: Not Available
- Release Tool/Test Probe: Not Available
|
