Garage Door Opener (GDO) (UG1)
Courtesy of GENERAL MOTORS CORP. Garage Door Opener (GDO) (UG1)
| Pin |
Wire |
Circuit |
Function |
| 1 |
0.5 RD/WH |
240 |
Battery Positive Voltage |
| 2 |
0.35 BN/WH |
230 |
Instrument Panel Lamp Dimming Control |
| 3 |
0.5 BK |
1050 |
Ground |

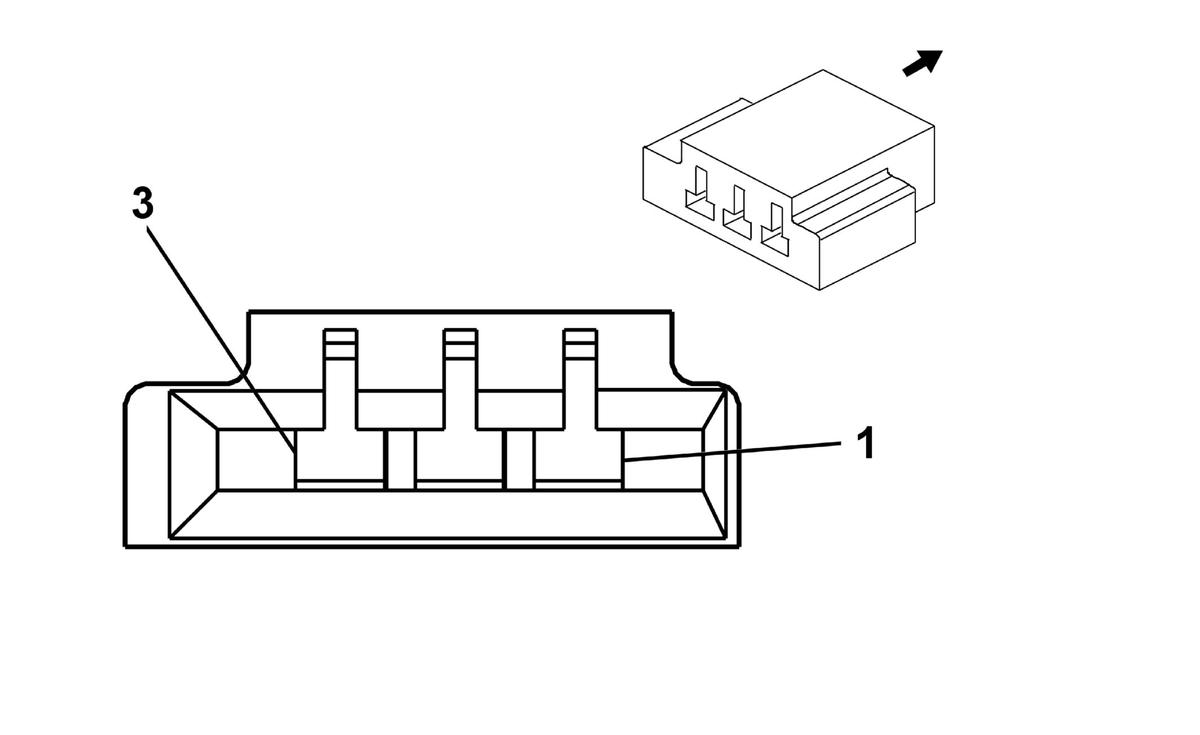

Connector Part Information
- Harness Type: Overhead Console
- OEM Connector: 12162335
- Service Connector: 13505907
- Description: 3-Way F P/C Series, Unsealed (NA)
|
Terminal Part Information
- Terminated Lead: Service by Connector Assembly- 13505907
- Release Tool: J-38125-213
- Diagnostic Test Probe: J-35616-4A (PU)
- Terminal/Tray: 08-50-0115/20
- Core/Insulation Crimp: E/C
|
