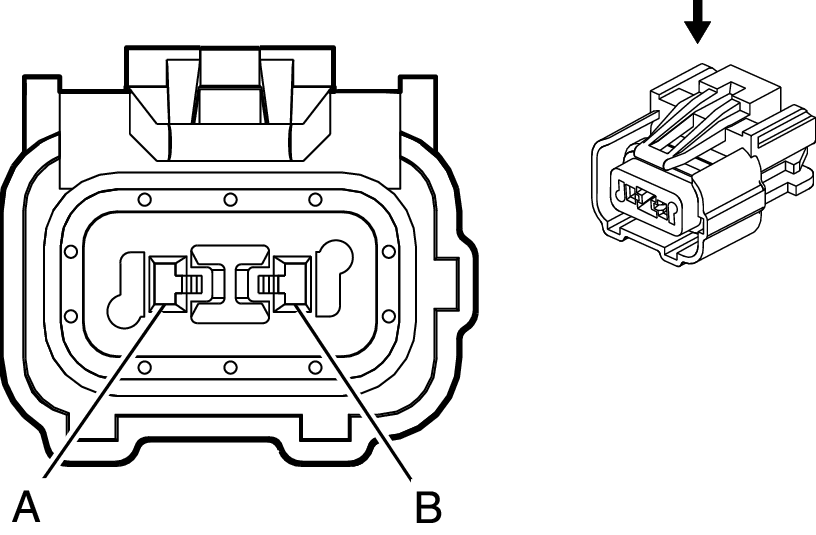

Fog Lamp- Left Front (X88 or Z88, with T96)
Courtesy of GENERAL MOTORS CORP. Fog Lamp- Left Front (X88 or Z88, with T96)
| Pin |
Wire |
Circuit |
Function |
| A |
0.8 PU |
2234 |
Front Fog Lamp Control |
| B |
0.8 BK |
150 |
Ground |
Connector Part Information
- Harness Type: Left Front Fog Lamp
- OEM Connector: 15489797
- Service Connector: 19168034
- Description: 2-Way F GT Flex Beam 150 Series, Sealed (BK)
|
Terminal Part Information
- Terminated Lead: Service by Connector Assembly- 19149215
- Release Tool: J-38125-29
- Diagnostic Test Probe: J-35616-2A (GY)
- Terminal/Tray: 15496531/8
- Core/Insulation Crimp: 2/A
|
