Evaporative Emissions (EVAP) Canister Vent Solenoid Valve

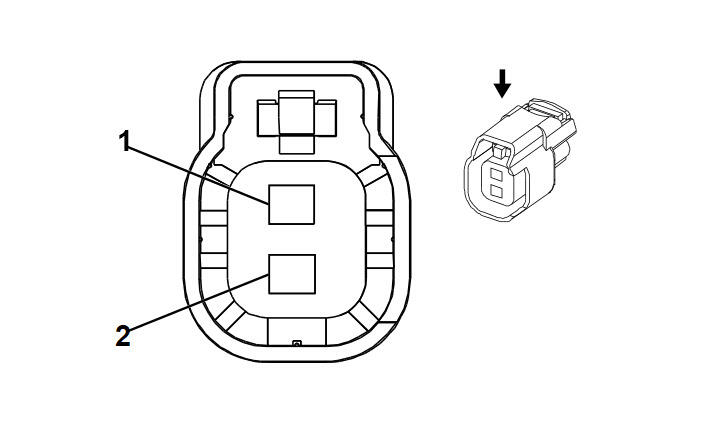

Courtesy of GENERAL MOTORS CORP. Evaporative Emissions (EVAP) Canister Vent Solenoid Valve
| Pin |
Wire |
Circuit |
Function |
| 1 |
0.5 WH |
1310 |
EVAP Canister Vent Solenoid Control |
| 2 |
0.5 RD/WH |
1840 |
Battery Positive Voltage |
Connector Part Information
- Harness Type: Chassis
- OEM Connector: 13771883
- Service Connector: 13579002
- Description: 2-Way F 1.5 Series, Sealed (BK)
|
Terminal Part Information
- Terminated Lead: Service by Connector Assembly- 13579002
- Release Tool: J-38125-11A
- Diagnostic Test Probe: J-35616-2A (GY)
- Terminal/Tray: 7116-4102-08/9
- Core/Insulation Crimp: E/1
|
