Electrical Component Locations
>>
Electrical Component Locator - Ground Distribution Views
>>
Ground Views
>>
Chassis (HP2)
Chassis (HP2)
Chassis (HP2)
Component Name
Callout
G300
1
G400
2
G401
3
G305
4

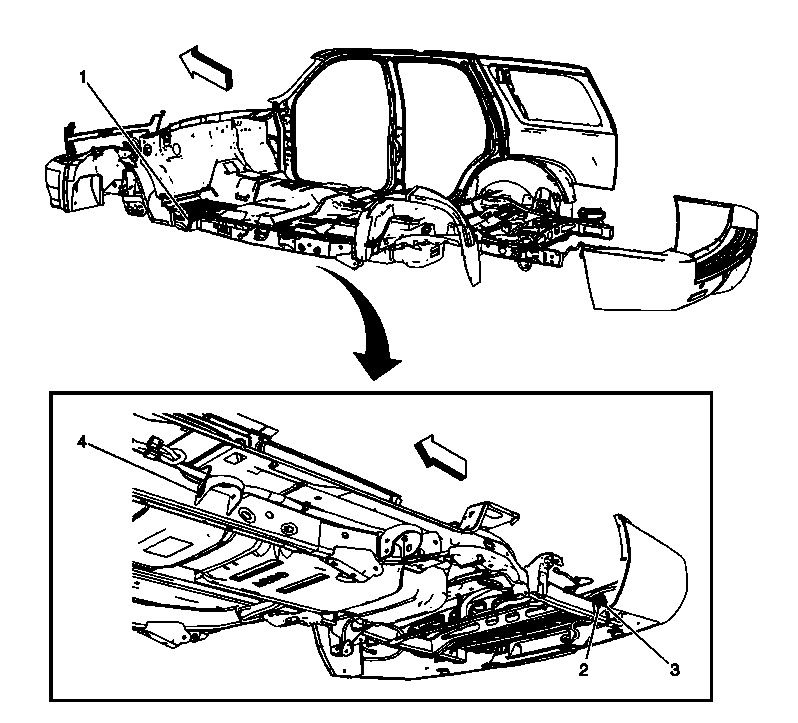

Fig 1: Chassis (HP2)
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
