Installation Procedure

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2003 GMC Savana Special, 2003 GMC Savana Camper Special, 2003 GMC Savana, 2003 Chevrolet RV Cutaway, and 2003 Chevrolet Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
WARNING: In order to avoid personal injury or vehicle damage when you repair or replace the carpet, use the same thickness and material size as the original installation. Always return the carpet to the original location.
  1. Install the rear floor mat/carpet to the vehicle.

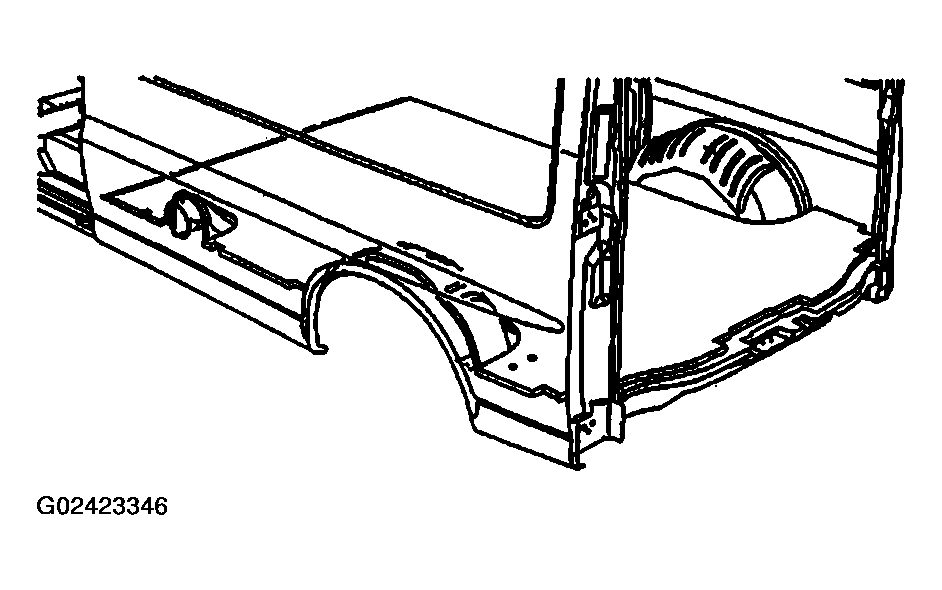

    2. Fig 1: Installing Rear Floor Mat/Carpet (Cargo Models)
    G02423346Courtesy of GENERAL MOTORS CORP.
  2. Install the side door stepwell mat. Refer to Mat Replacement - Stepwell .
  3. Install the rear floor carpet trim plate. Refer to FLOOR TRIM PLATE REPLACEMENT - REAR .
  4. Install the passenger side body side trim panel. Refer to Trim Panel Replacement - Right Body Side .
  5. Install the driver side body side trim panel. Refer to Trim Panel Replacement - Left Body Side .
  6. Install the rear passenger seats. Refer to SEAT REPLACEMENT - REAR BENCH .
