Installation Procedure

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2003 GMC Savana Special, 2003 GMC Savana Camper Special, 2003 GMC Savana, 2003 Chevrolet RV Cutaway, and 2003 Chevrolet Cutaway. However, it is still accessible from the selected car via links, so may be relevant.

Install the bulbs into the sockets by turning the bulbs in a clockwise direction.
Connect the bulb sockets into the tail lamp (3).
CAUTION: Refer to FASTENER NOTICE .
Install the tail lamp retaining nuts (2) to the upper quarter panel.
Tighten

Tighten the nuts to 5 N.m (44 lb in).
Install the upper quarter panel applique. Refer to TAIL LAMP, BACK BODY OPENING APPLIQUE REPLACEMENT - SIDE .

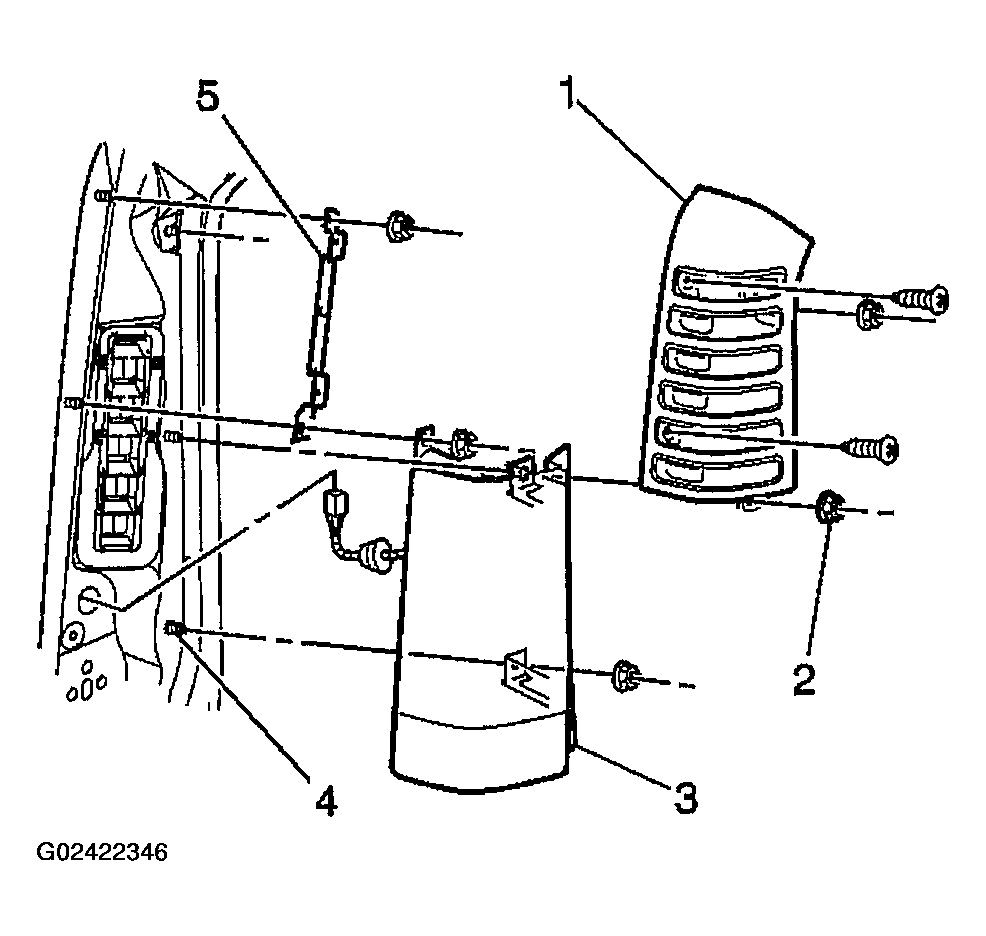

Fig 1: Installing Tail Lamp
Courtesy of GENERAL MOTORS CORP.
