Removal Procedure

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2003 GMC Savana Special, 2003 GMC Savana Camper Special, 2003 GMC Savana, 2003 Chevrolet RV Cutaway, and 2003 Chevrolet Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
WARNING: Refer to BATTERY DISCONNECT CAUTION .
  1. Disconnect the battery negative cable. Refer to BATTERY NEGATIVE CABLE DISCONNECT/CONNECT PROCEDURE .
  2. Disconnect the electrical connector from the stop lamp switch.
  3. Remove the retainer from the brake pedal pin.
  4. Remove the stop lamp switch and the pushrod to the power brake booster from the brake pedal pin.
  5. Unsnap the stop lamp switch from the power brake booster pushrod.

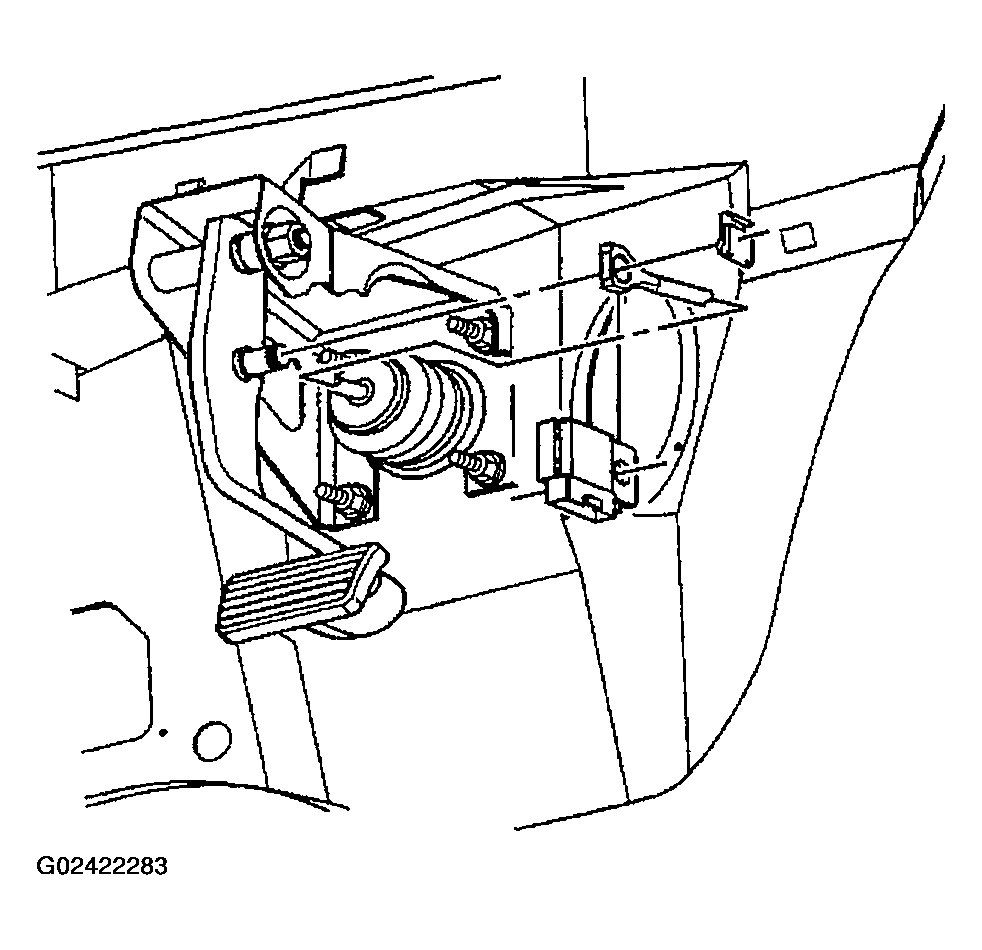

    Fig 1: Removing Stop Lamp Switch
    G02422283Courtesy of GENERAL MOTORS CORP.
