Installation Procedure

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2003 GMC Savana Special, 2003 GMC Savana Camper Special, 2003 GMC Savana, 2003 Chevrolet RV Cutaway, and 2003 Chevrolet Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the bulb (4) to the socket.
  2. Push in on the bulb (4) and turn 1/4 turn clockwise.
  3. Install the bulb (4) and socket into the rubber grommet in the headlamp capsule (1).
  4. Install the headlamp capsule (1) to the headlamp housing.
  5. Install the retaining ring to the headlamp housing assembly.
    CAUTION: Refer to FASTENER NOTICE .
  6. Install the screws to the retaining ring to the headlamp housing assembly.

    Tighten

    Tighten the screws to 1.5 N.m (13 lb in).

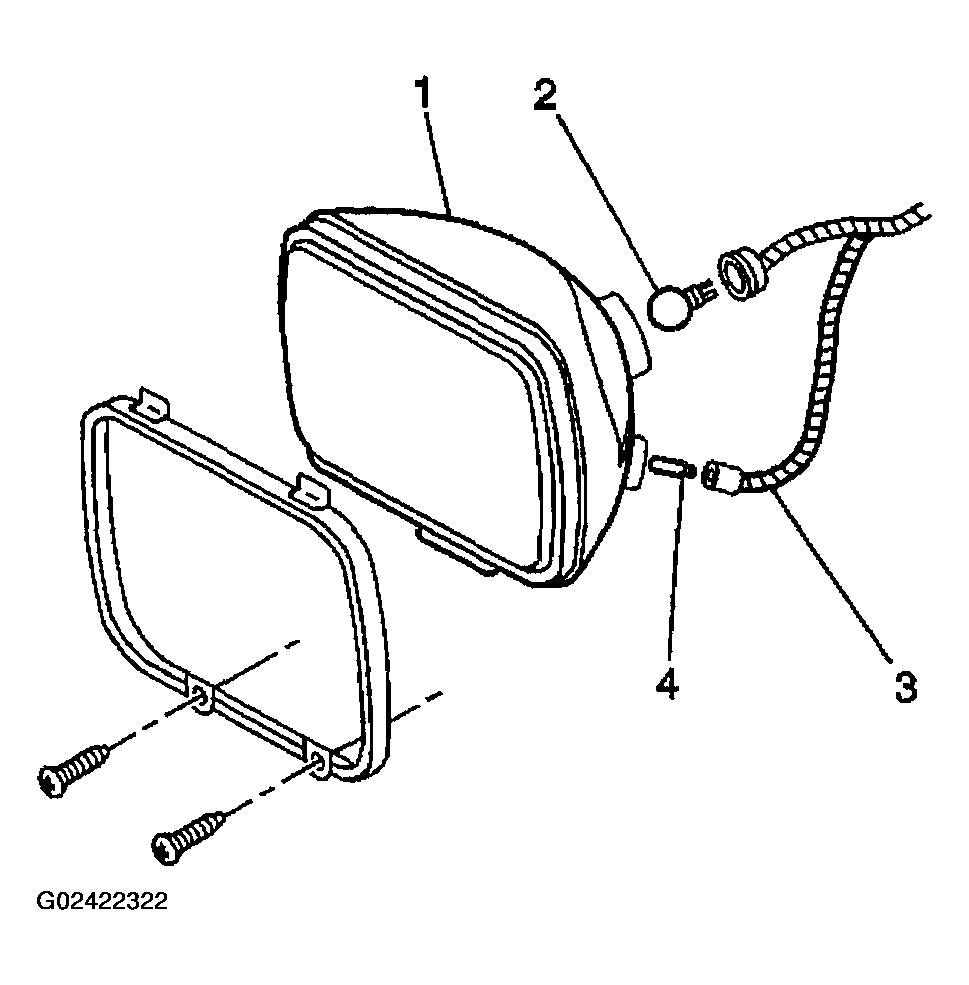

    Fig 1: Installing Position Lamp
    G02422322Courtesy of GENERAL MOTORS CORP.
