Installation Procedure

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2003 GMC Savana Special, 2003 GMC Savana Camper Special, 2003 GMC Savana, 2003 Chevrolet RV Cutaway, and 2003 Chevrolet Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
  1. Connect the bulb (2) into the socket.
  2. Connect the bulb socket (2) into the license plate lamp.
  3. Install the license plate lamp (3) to the license pocket.
    CAUTION: Refer to FASTENER NOTICE .
  4. Install the license plate lamp retaining screws (4) to the license pocket.

    Tighten

    Tighten the screws to 2.5 N.m (22 lb in).

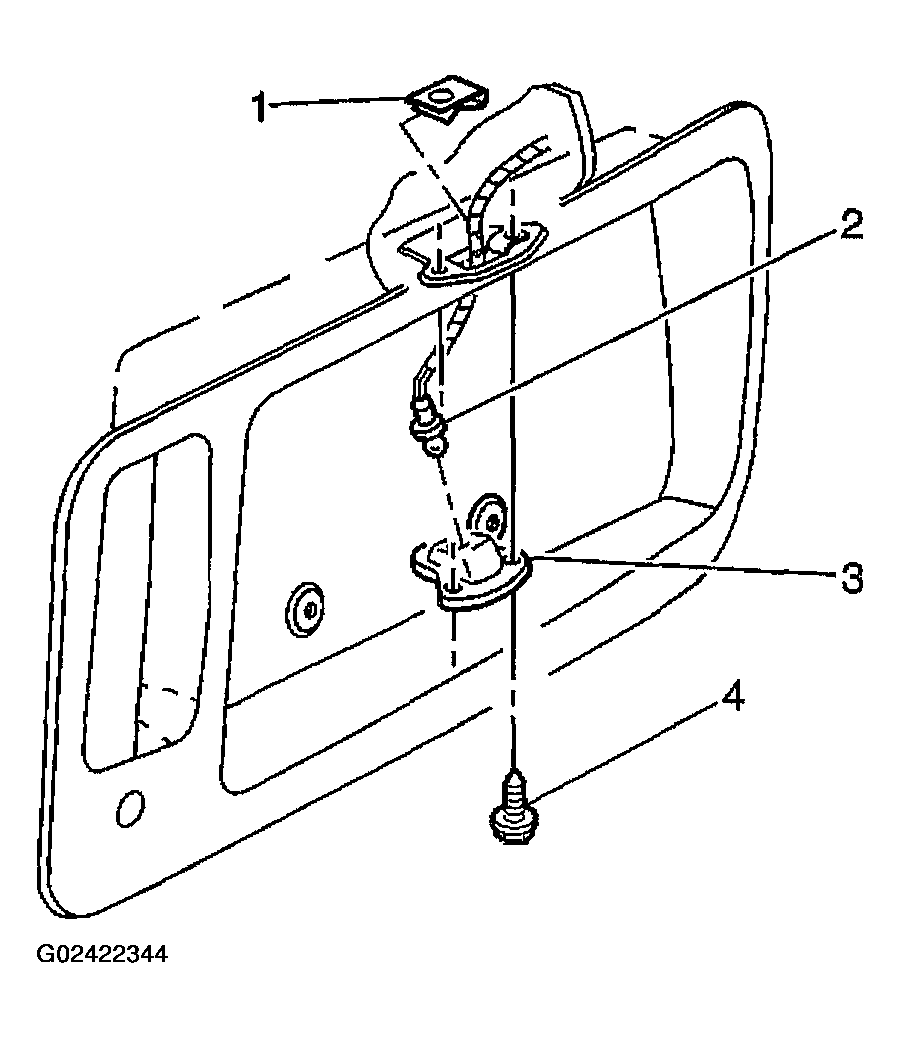

    Fig 1: Installing License Lamp
    G02422344Courtesy of GENERAL MOTORS CORP.
