Removal Procedure

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2003 GMC Savana Special, 2003 GMC Savana Camper Special, 2003 GMC Savana, 2003 Chevrolet RV Cutaway, and 2003 Chevrolet Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the instrument panel cluster trim plate. Refer to TRIM PLATE BEZEL REPLACEMENT - INSTRUMENT PANEL (I/P) CLUSTER .
  2. Disconnect the electrical connector from the headlamp switch.
  3. Remove the headlamp switch from the instrument panel cluster trim plate by releasing the retainers on the instrument panel cluster trim plate from the headlamp switch.
  4. Remove the headlamp switch from the vehicle.

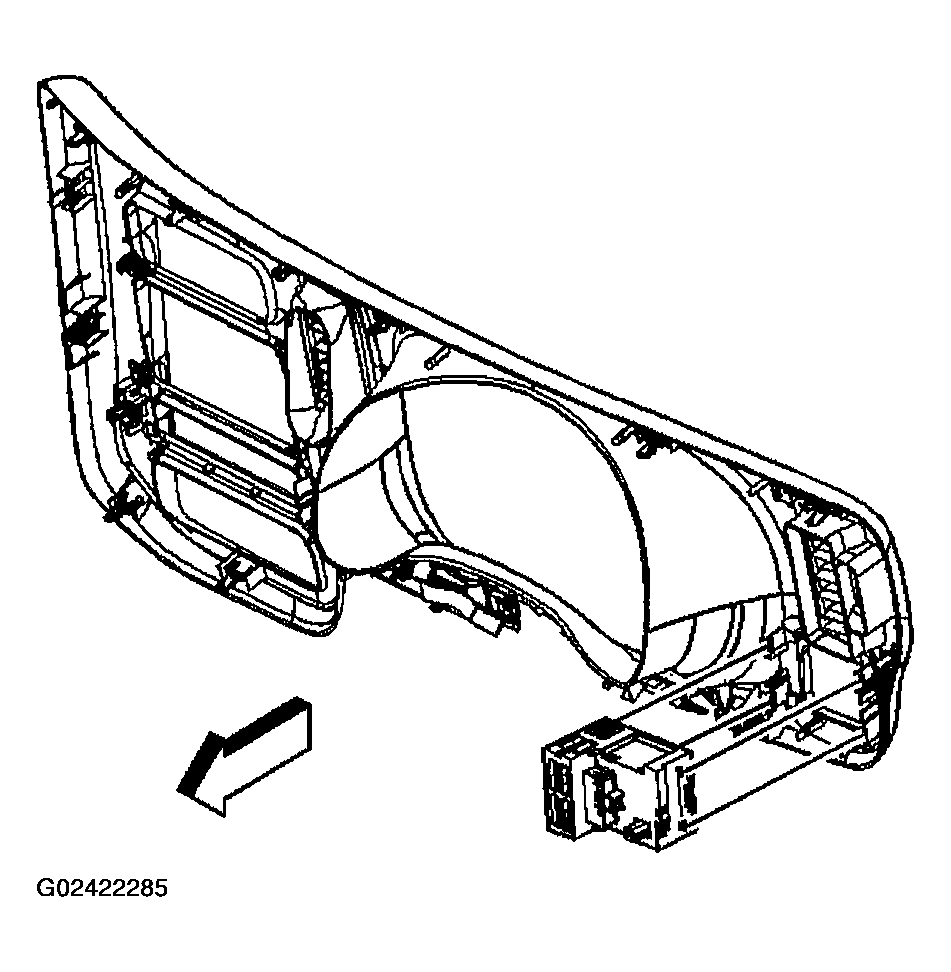

    Fig 1: Removing Headlamp Switch
    G02422285Courtesy of GENERAL MOTORS CORP.
