Installation Procedure

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2003 GMC Savana Special, 2003 GMC Savana Camper Special, 2003 GMC Savana, 2003 Chevrolet RV Cutaway, and 2003 Chevrolet Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
WARNING: Refer to HALOGEN BULB CAUTION .
  1. Connect the electrical connector (1) to the headlamp assembly.
  2. Install the composite headlamp (4) to the vehicle.
    CAUTION: Refer to FASTENER NOTICE .
  3. Install the composite headlamp retaining bolts (5) to the radiator support.

    Tighten

    Tighten the bolts to 11 N.m (97 lb in).

  4. Install the radiator grille. Refer to GRILLE REPLACEMENT (UPLEVEL) or GRILLE REPLACEMENT (BASE) .

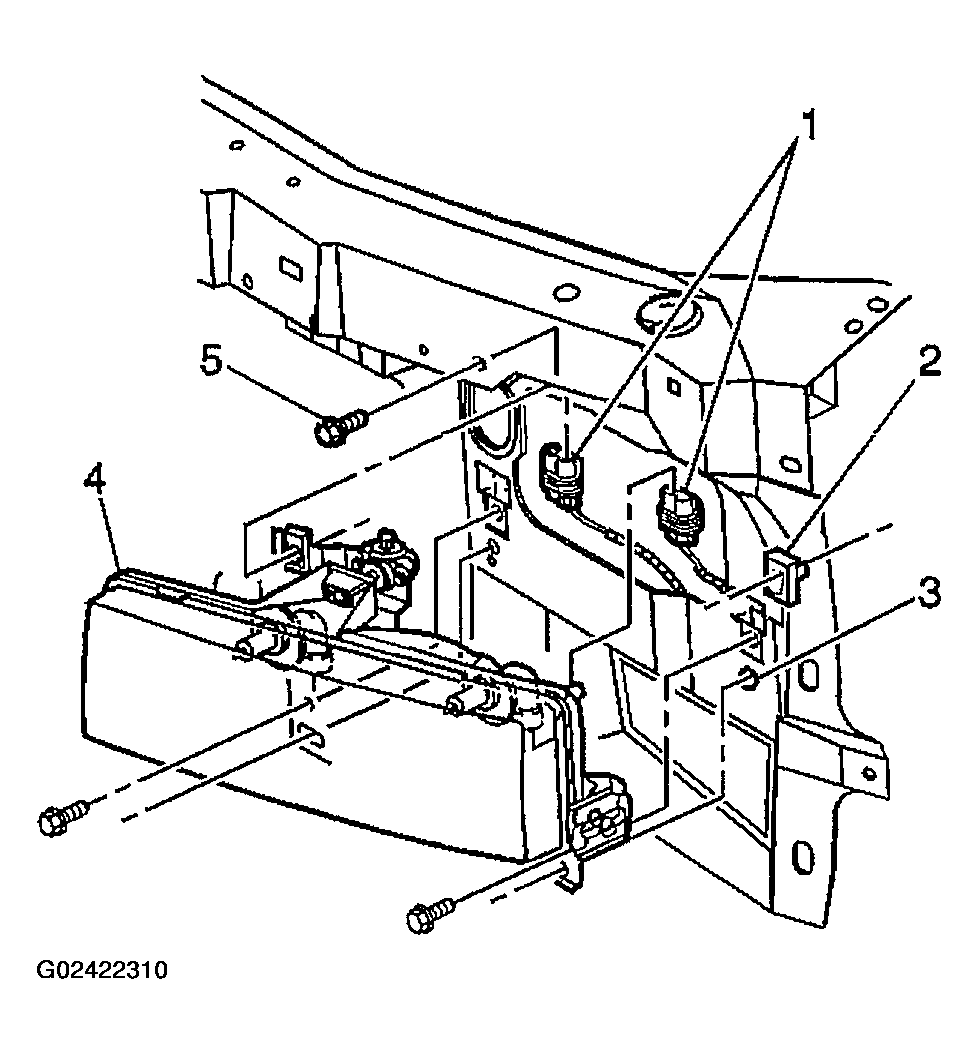

    Fig 1: Connecting Connector & Installing Composite Headlamp
    G02422310Courtesy of GENERAL MOTORS CORP.
