Installation Procedure

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2003 GMC Savana Special, 2003 GMC Savana Camper Special, 2003 GMC Savana, 2003 Chevrolet RV Cutaway, and 2003 Chevrolet Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
  1. Partially install the dome lamp housing (1) to the headliner.
  2. Connect the dome lamp electrical connector (2).

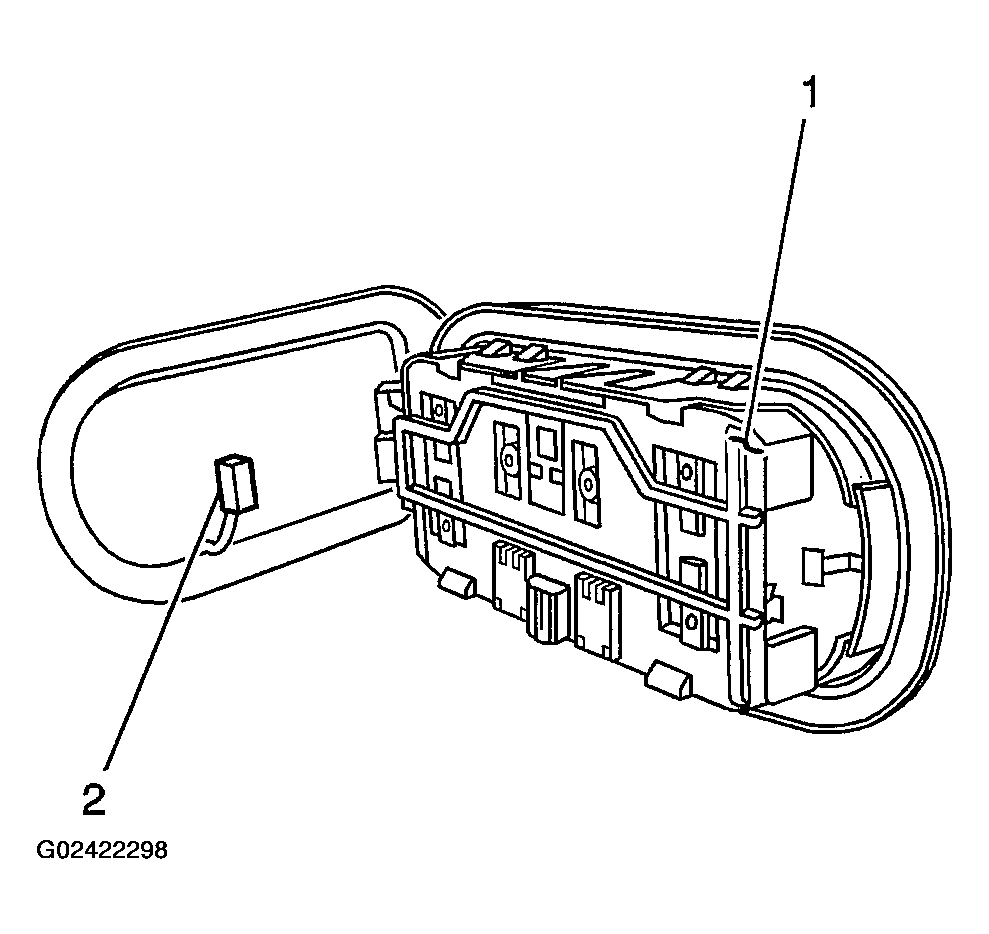

    Fig 1: Connecting Dome Lamp Electrical Connector
    G02422298Courtesy of GENERAL MOTORS CORP.
  3. Install the dome lamp lens (2) to the dome lamp housing.
  4. Snap the dome lamp lens (2) into the dome lamp housing.

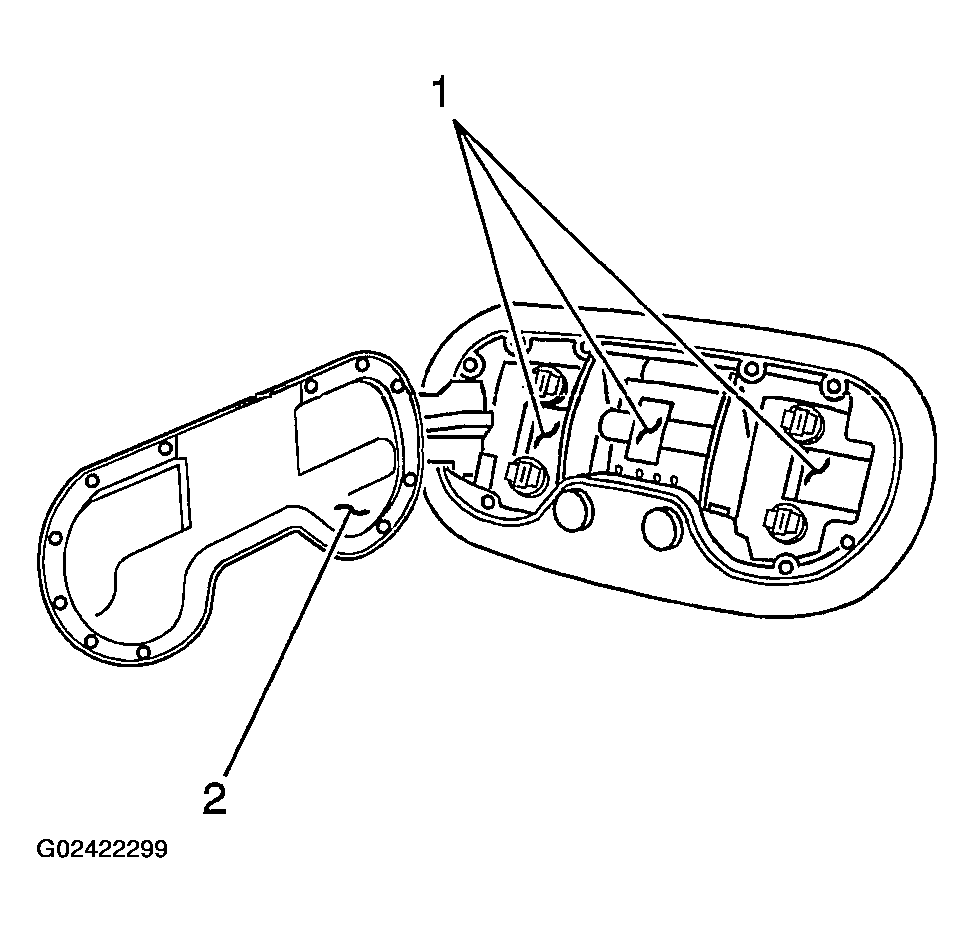

    Fig 2: Installing Dome Lamp Lens
    G02422299Courtesy of GENERAL MOTORS CORP.
