Installation Procedure

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2003 GMC Savana Special, 2003 GMC Savana Camper Special, 2003 GMC Savana, 2003 Chevrolet RV Cutaway, and 2003 Chevrolet Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the dome lamp bulbs (1).
  2. Snap the dome lamp lens (2) into the housing.

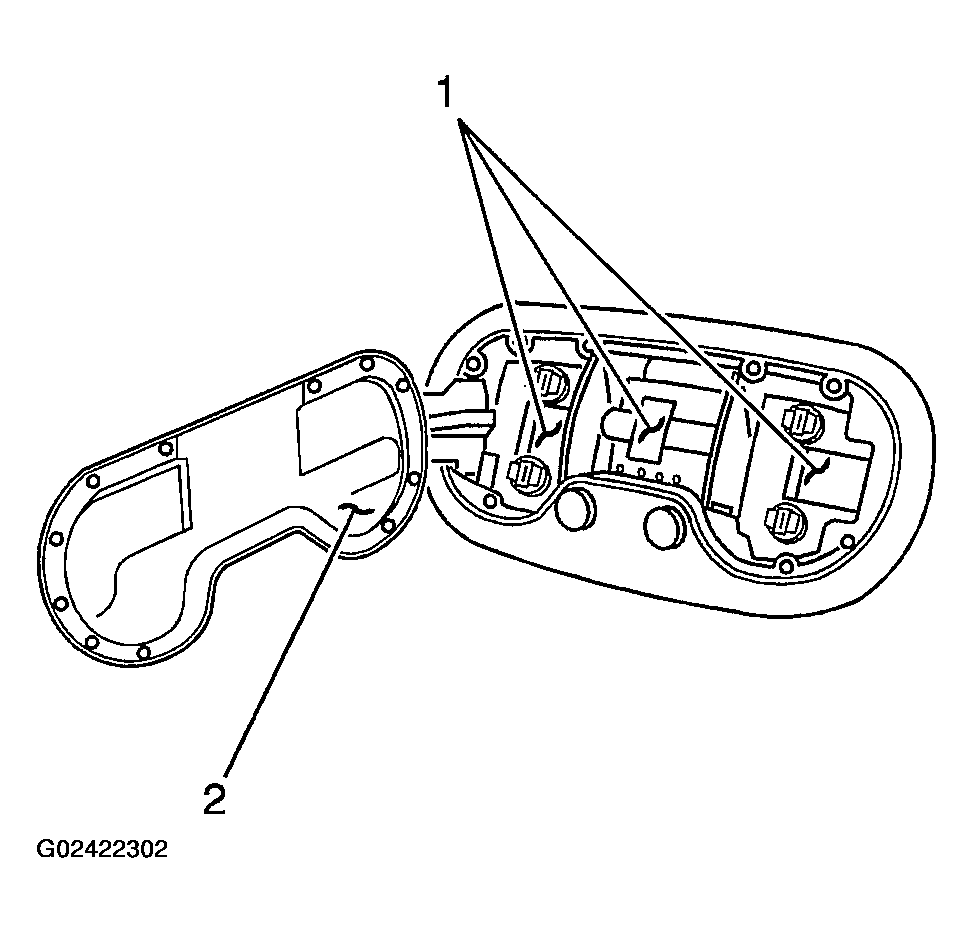

    Fig 1: Installing Dome Lamp Bulbs
    G02422302Courtesy of GENERAL MOTORS CORP.
