Removal Procedure

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2003 GMC Savana Special, 2003 GMC Savana Camper Special, 2003 GMC Savana, 2003 Chevrolet RV Cutaway, and 2003 Chevrolet Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the electrical connector.
  2. Using a plastic flat bladed tool, release the double sided tape that retains the light assembly to the vehicle.

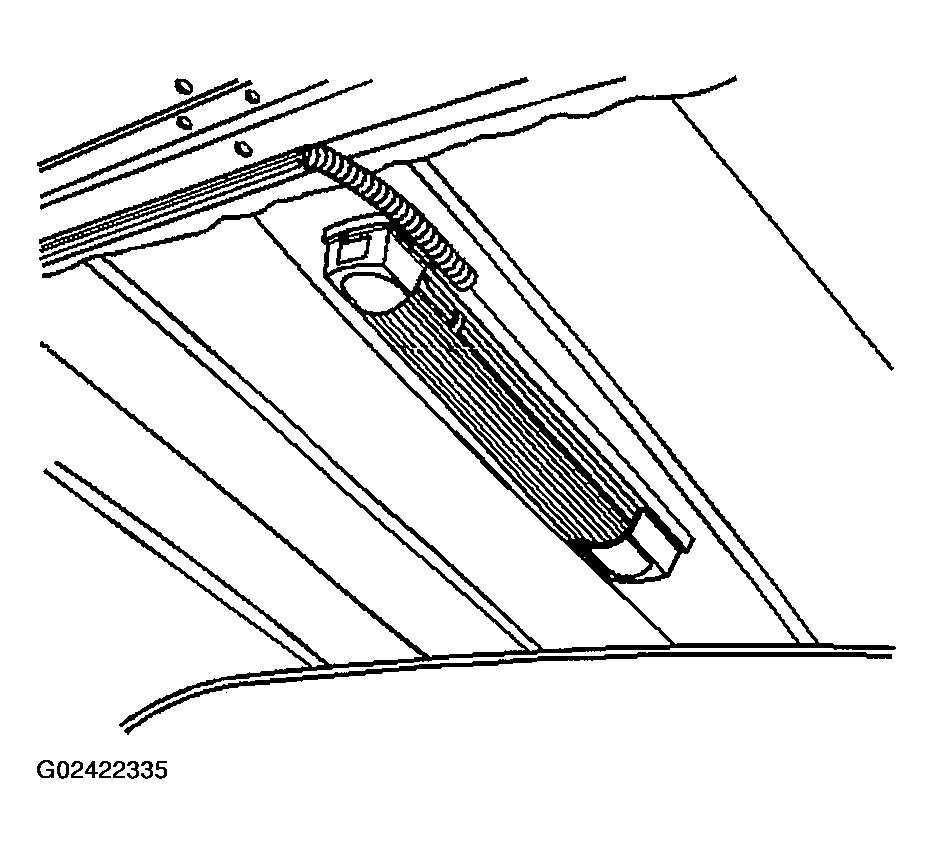

    Fig 1: Removing Cargo Lamp
    G02422335Courtesy of GENERAL MOTORS CORP.
