Installation Procedure

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2003 GMC Savana Special, 2003 GMC Savana Camper Special, 2003 GMC Savana, 2003 Chevrolet RV Cutaway, and 2003 Chevrolet Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the light assembly into the vehicle with double sided tape.

    Important:  In order to insure a good replacement of new adhesive or of old adhesive, verify that the surface meets the following conditions:

    • The temperature of the surface is approximately 24-41 °C (80-105°F).
    • The surface is clean.
    • The surface is free of wax or of oily film.
  2. Connect the electrical connector.

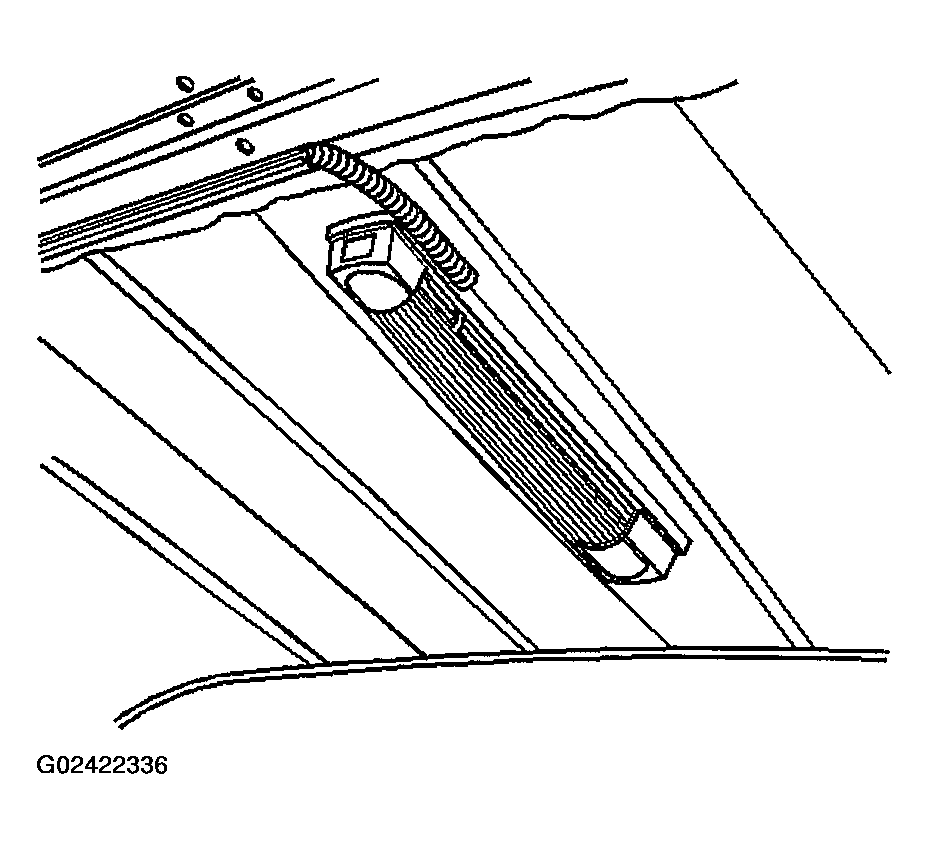

    Fig 1: Installing Cargo Lamp
    G02422336Courtesy of GENERAL MOTORS CORP.
