Removal Procedure

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2003 GMC Savana Special, 2003 GMC Savana Camper Special, 2003 GMC Savana, 2003 Chevrolet RV Cutaway, and 2003 Chevrolet Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the electrical connector from the lamp assembly.
  2. Remove the nut retaining the lamp assembly to the bracket.
    Fig 1: Disconnecting Connector & Removing Lamp Assembly Nut
    G02422337Courtesy of GENERAL MOTORS CORP.
  3. Remove the lamp assembly from the bumper.

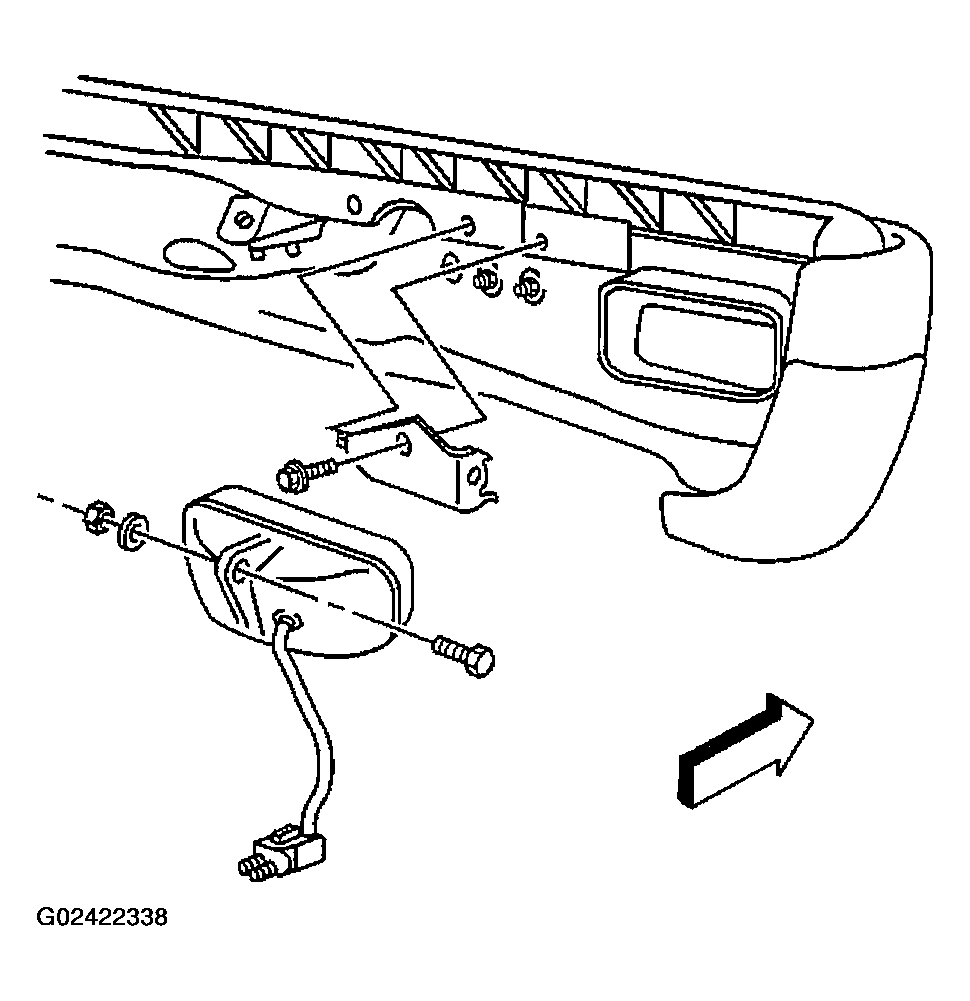

    Fig 2: Removing Backup Lamp Assembly
    G02422338Courtesy of GENERAL MOTORS CORP.
