Installation Procedure

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2003 GMC Savana Special, 2003 GMC Savana Camper Special, 2003 GMC Savana, 2003 Chevrolet RV Cutaway, and 2003 Chevrolet Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the lamp assembly to the bumper.

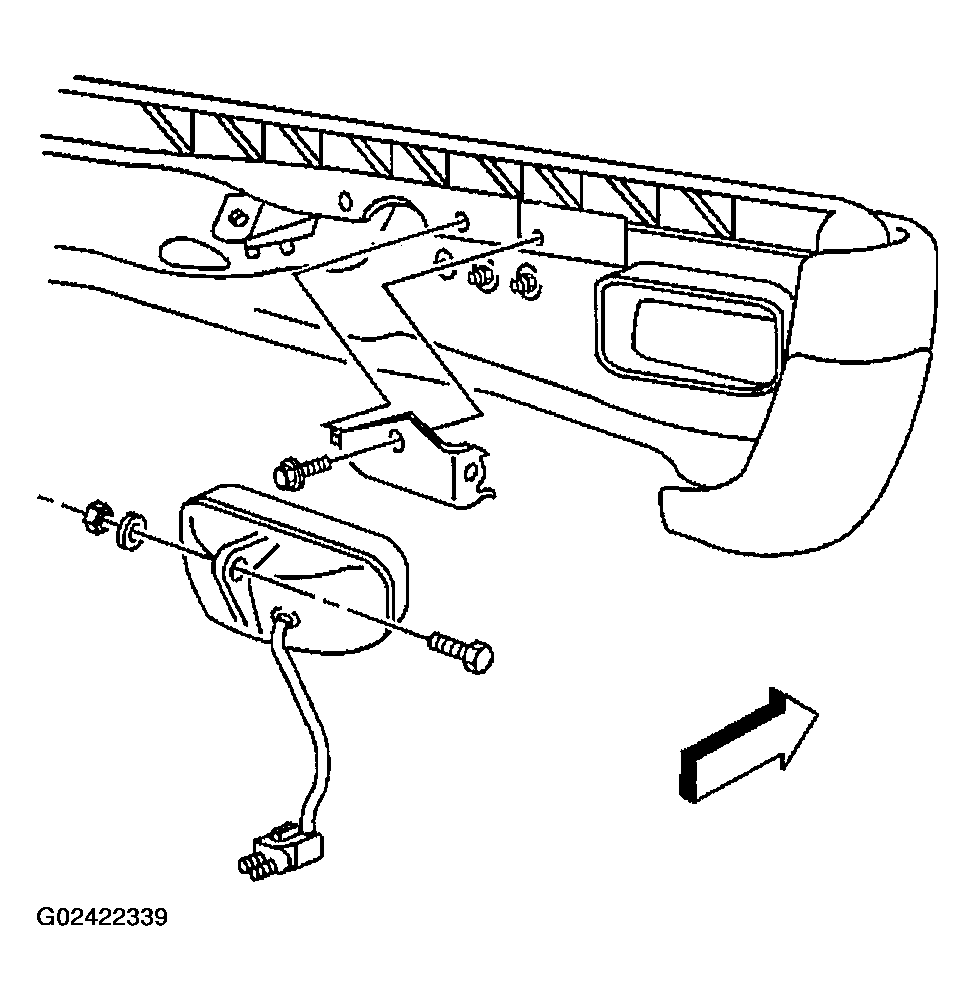

    Fig 1: Installing Backup Lamp Assembly
    G02422339Courtesy of GENERAL MOTORS CORP.
    CAUTION: Refer to FASTENER NOTICE .
  2. Install the nut to the lamp.

    Tighten

    Tighten the nut to 2 N.m (18 in lb).

  3. Connect the electrical connector to the lamp assembly.
    Fig 2: Installing Nut & Connecting Connector
    G02422340Courtesy of GENERAL MOTORS CORP.
