Installation Procedure

WARNING: This page is about a different car, the 2009 GMC Sierra, 2009 GMC Cab & Chassis Sierra, 2009 Chevrolet Silverado, and 2009 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.

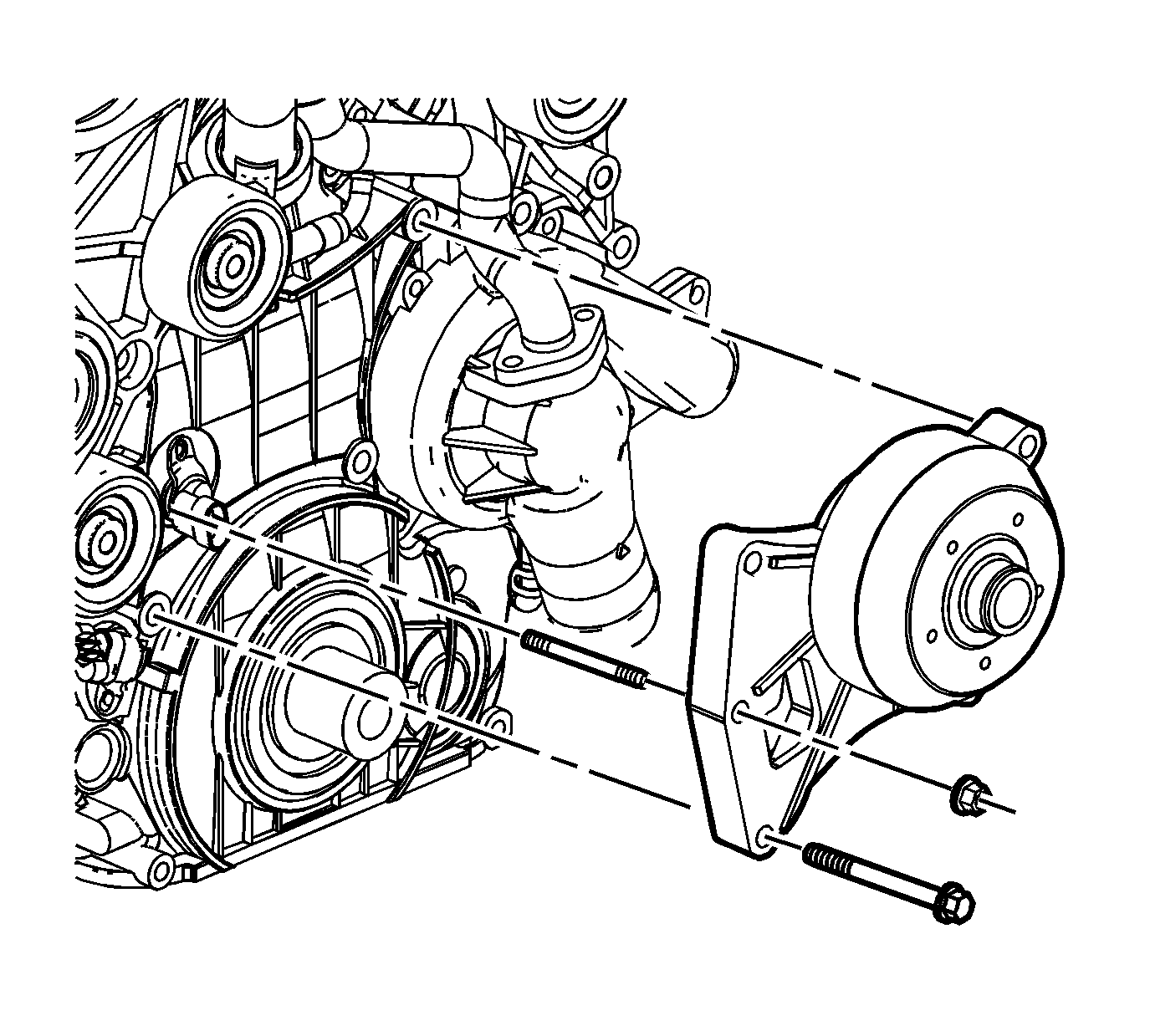

    Fig 1: View Of Cooling Fan Pulley
    GM1334864Courtesy of GENERAL MOTORS CORP.
    CAUTION: Refer to Fastener Caution .
  1. Install the fan pulley.
  2. Install the fan pulley bolts/nuts.

    Tighten:  Tighten the bolts/nuts to 41 N.m (30 lb ft).

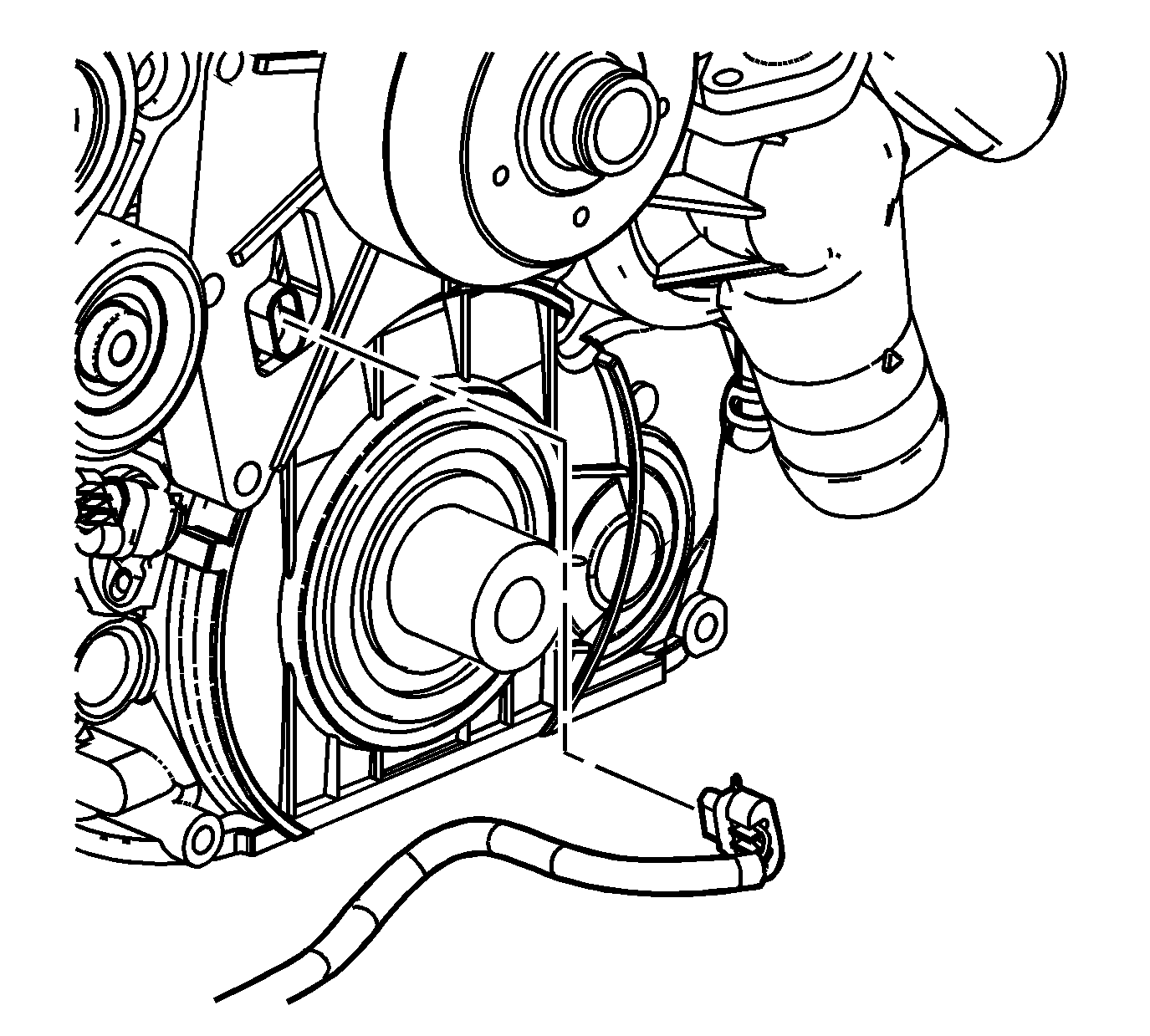

    3. Fig 2: View Of Camshaft Position Sensor Electrical Connector
    GM1334862Courtesy of GENERAL MOTORS CORP.
  3. Connect the CMP sensor electrical connector.
  4. Install the fan clutch. Refer to Fan Clutch Replacement (Diesel) .
  5. Install the drive belt. Refer to Drive Belt Replacement .
