Tail Lamp Replacement

WARNING: This page is about a different car, the 2008 Cadillac CTS. However, it is still accessible from the selected car via links, so may be relevant.

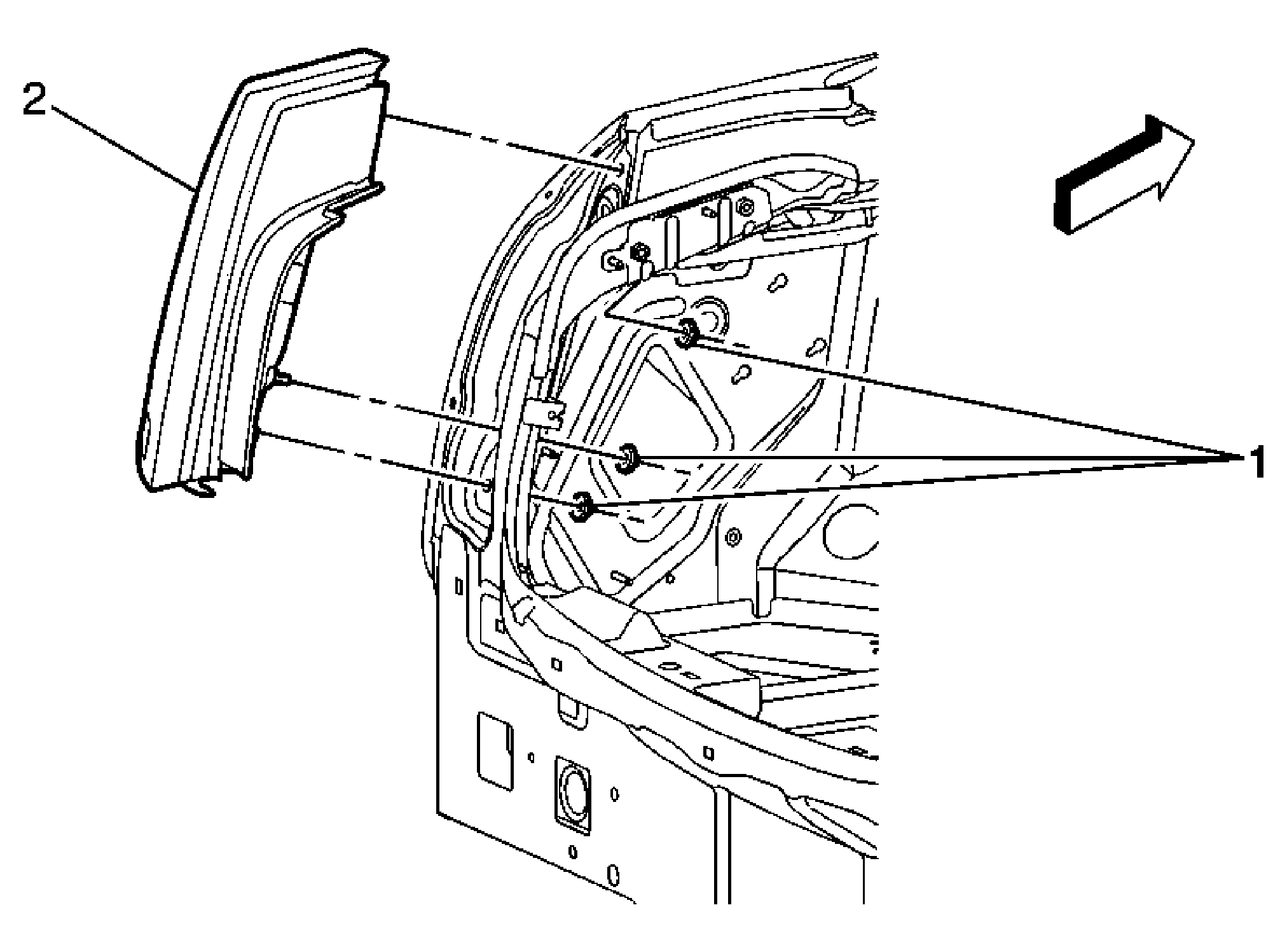

Fig 1: Tail Lamp Replacement

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure Open the rear compartment lid. Remove the interior rear compartment side trim panel. Refer to Rear Compartment Side Trim Panel Replacement . Disengage the rear compartment weatherstrip from the rear tail lamp area.
1	Tail Lamp Assembly Nut (Qty: 3) NOTE: Refer to Fastener Notice . Tighten: 6 N.m (53 lb in)
2	Tail Lamp Assembly Pull the top of the lamp assembly slightly outward. Pull the lamp rearward in order to disconnect the electrical connection and the two outer locator pins. Lift and slightly rotate the lamp assembly in order to clear the rear bumper fascia.

Callout

Component Name

Preliminary Procedure

Open the rear compartment lid.
Remove the interior rear compartment side trim panel. Refer to Rear Compartment Side Trim Panel Replacement .
Disengage the rear compartment weatherstrip from the rear tail lamp area.

Tail Lamp Assembly Nut (Qty: 3)

NOTE: Refer to Fastener Notice .

Tighten: 6 N.m (53 lb in)

Tail Lamp Assembly

Pull the top of the lamp assembly slightly outward.
Pull the lamp rearward in order to disconnect the electrical connection and the two outer locator pins.
Lift and slightly rotate the lamp assembly in order to clear the rear bumper fascia.
