Headlamp Capsule Replacement

WARNING: This page is about a different car, the 2008 Cadillac CTS. However, it is still accessible from the selected car via links, so may be relevant.

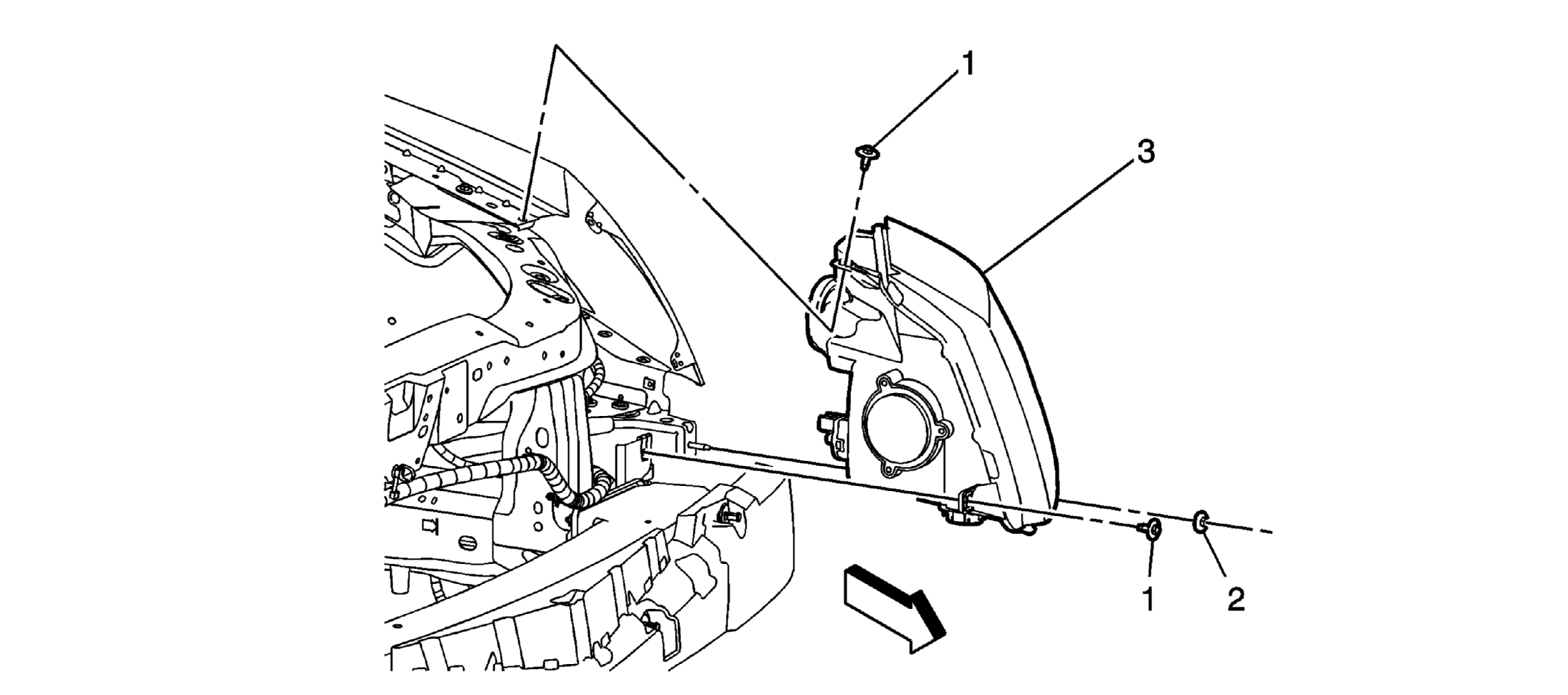

Fig 1: Headlamp Capsule Replacement

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
CAUTION: The high intensity discharge system produces high voltage and current. In order to reduce the risk of severe shocks and burns, the battery negative cable must be disconnected any time service work is being performed on or around the high intensity discharge system. CAUTION: The high intensity discharge system produces high voltage and current. To reduce the risk of severe shocks and burns: Never open the high intensity discharge system ballast or the arc tube assembly starter. Never probe between the high intensity discharge system ballast output connector and the arc tube assembly. Preliminary Procedure Open and support the hood. Remove the front bumper fascia. Refer to Front Bumper Fascia Replacement . Disconnect the headlamp electrical connector at the base of the headlamp assembly.
1	Headlamp Capsule Assembly Bolt (Qty: 2) NOTE: Refer to Fastener Notice . Tighten: 6 N.m (53 lb in)
2	Headlamp Capsule Assembly Nut Tighten: 6 N.m (53 lb in)
3	Headlamp Capsule Assembly Tip: Carefully move the headlamp capsule assembly upward and outward in order to remove.
