Front Side Turn Signal Lamp Replacement

WARNING: This page is about a different car, the 2008 Cadillac CTS. However, it is still accessible from the selected car via links, so may be relevant.

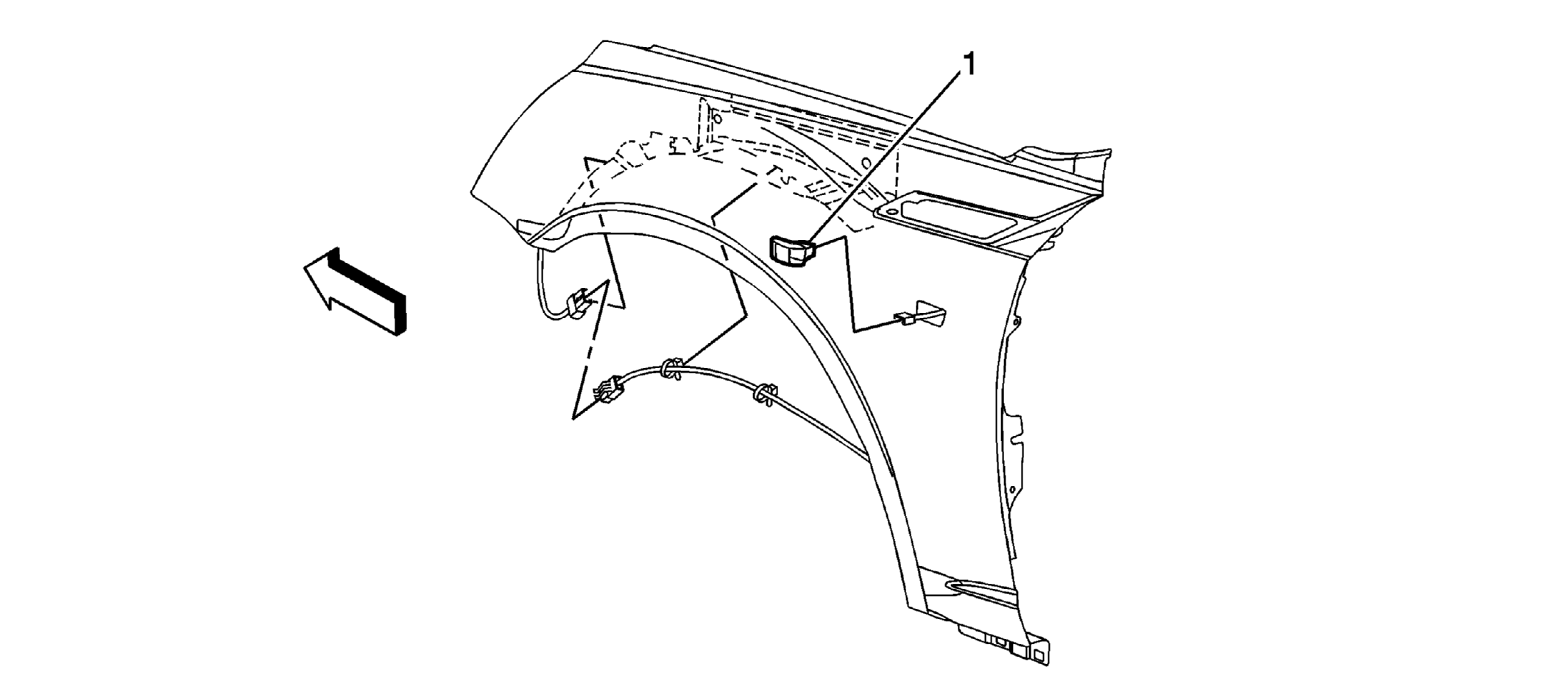

Fig 1: Front Side Turn Signal Lamp Replacement

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure: Apply two layers of masking tape to the rear edge of the lamp assembly in order to protect the painted surface when removing the lamp from the fender.
1	Front Side Turn Signal Lamp Procedure Using a small flat-bladed tool, depress the locking tab at the rear edge of the turn signal lamp assembly. Pull the lamp outward away from the fender. Disconnect the electrical connector to remove the lamp assembly. Rotate the bulb socket from the lamp. Replace the bulb as needed.

Callout

Component Name

Preliminary Procedure:
Apply two layers of masking tape to the rear edge of the lamp assembly in order to protect the painted surface when removing the lamp from the fender.

Front Side Turn Signal Lamp

Procedure

Using a small flat-bladed tool, depress the locking tab at the rear edge of the turn signal lamp assembly.
Pull the lamp outward away from the fender.
Disconnect the electrical connector to remove the lamp assembly.
Rotate the bulb socket from the lamp.
Replace the bulb as needed.
