Front Fog Lamp Bulb Replacement

WARNING: This page is about a different car, the 2008 Cadillac CTS. However, it is still accessible from the selected car via links, so may be relevant.

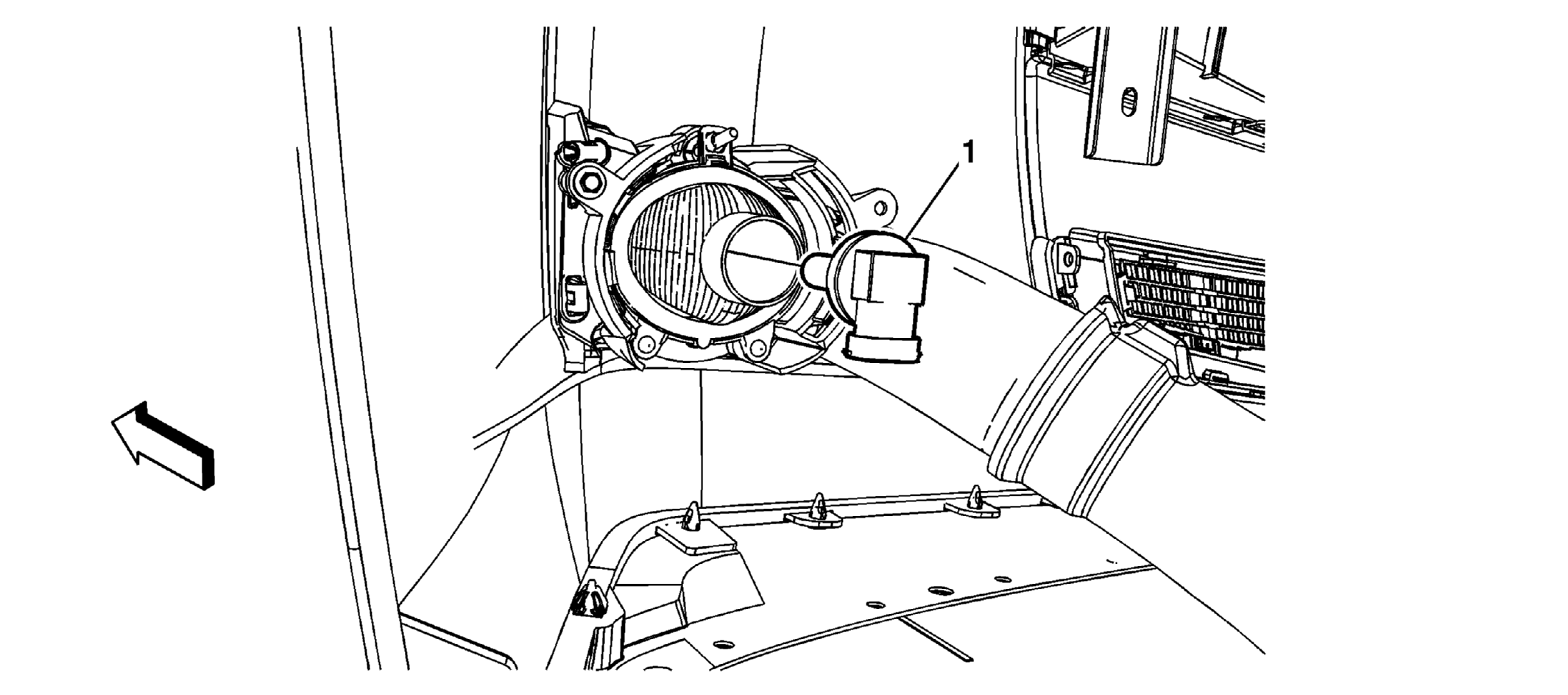

Fig 1: Front Fog Lamp Bulb Replacement

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedures Remove either the LF or RF wheelhouse liner extension. Refer to Wheelhouse Extension Replacement . Disconnect the fog lamp bulb socket electrical connector.
1	Front Fog Lamp Bulb Socket CAUTION: Refer to Halogen Bulb Caution . Tip: Turn the bulb socket counterclockwise and remove from the lamp assembly.

Callout

Component Name

Preliminary Procedures

Remove either the LF or RF wheelhouse liner extension. Refer to Wheelhouse Extension Replacement .
Disconnect the fog lamp bulb socket electrical connector.

Front Fog Lamp Bulb Socket

CAUTION: Refer to Halogen Bulb Caution .

Tip: Turn the bulb socket counterclockwise and remove from the lamp assembly.
