High Speed Bus (2 of 2)

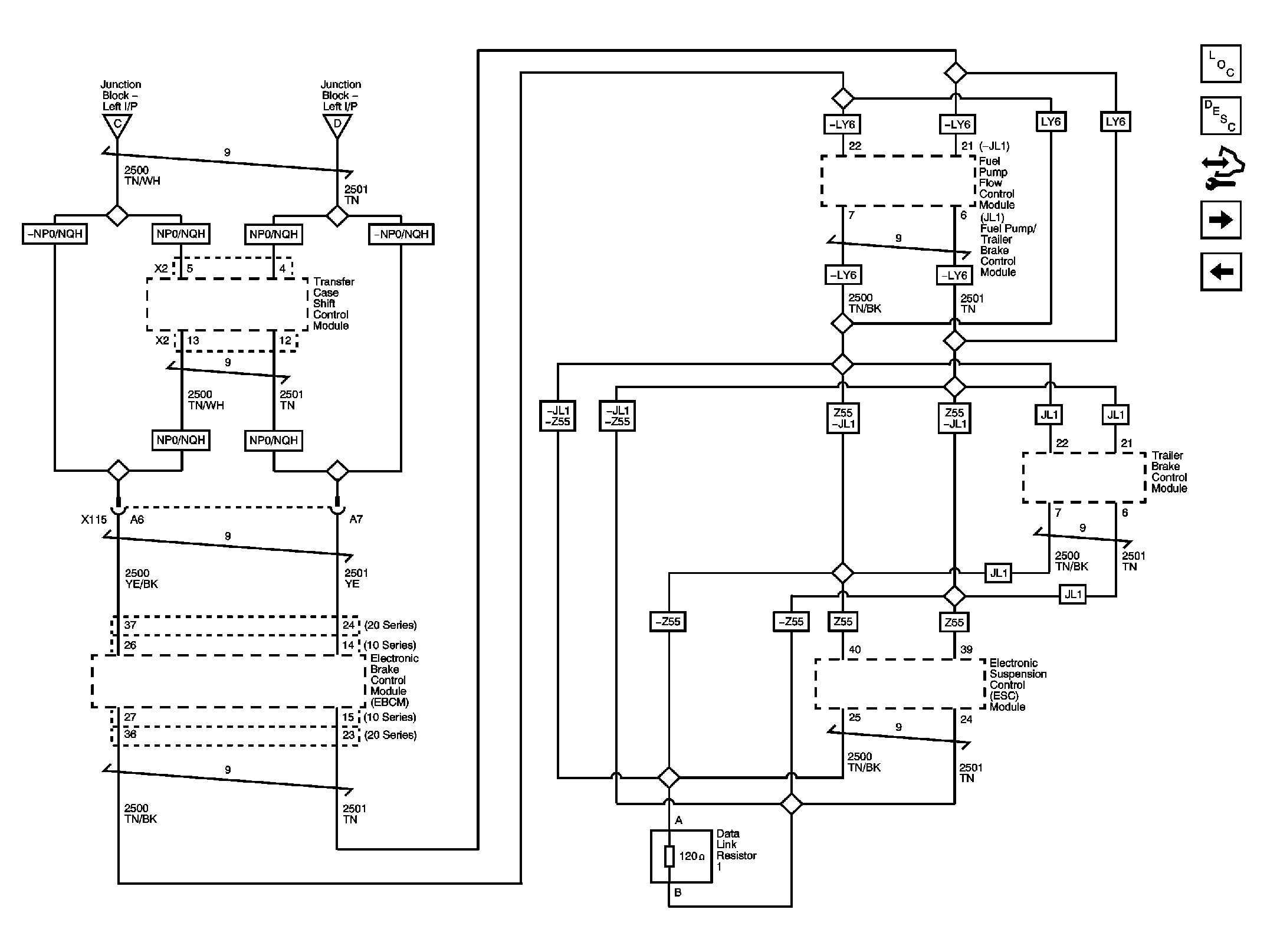

Fig 1: High Speed Bus (2 of 2) Wiring Schematic

GM2398337

Courtesy of GENERAL MOTORS CORP.
