Brake, Horn, Transmission, Theft, and Secondary/Configurable Control References

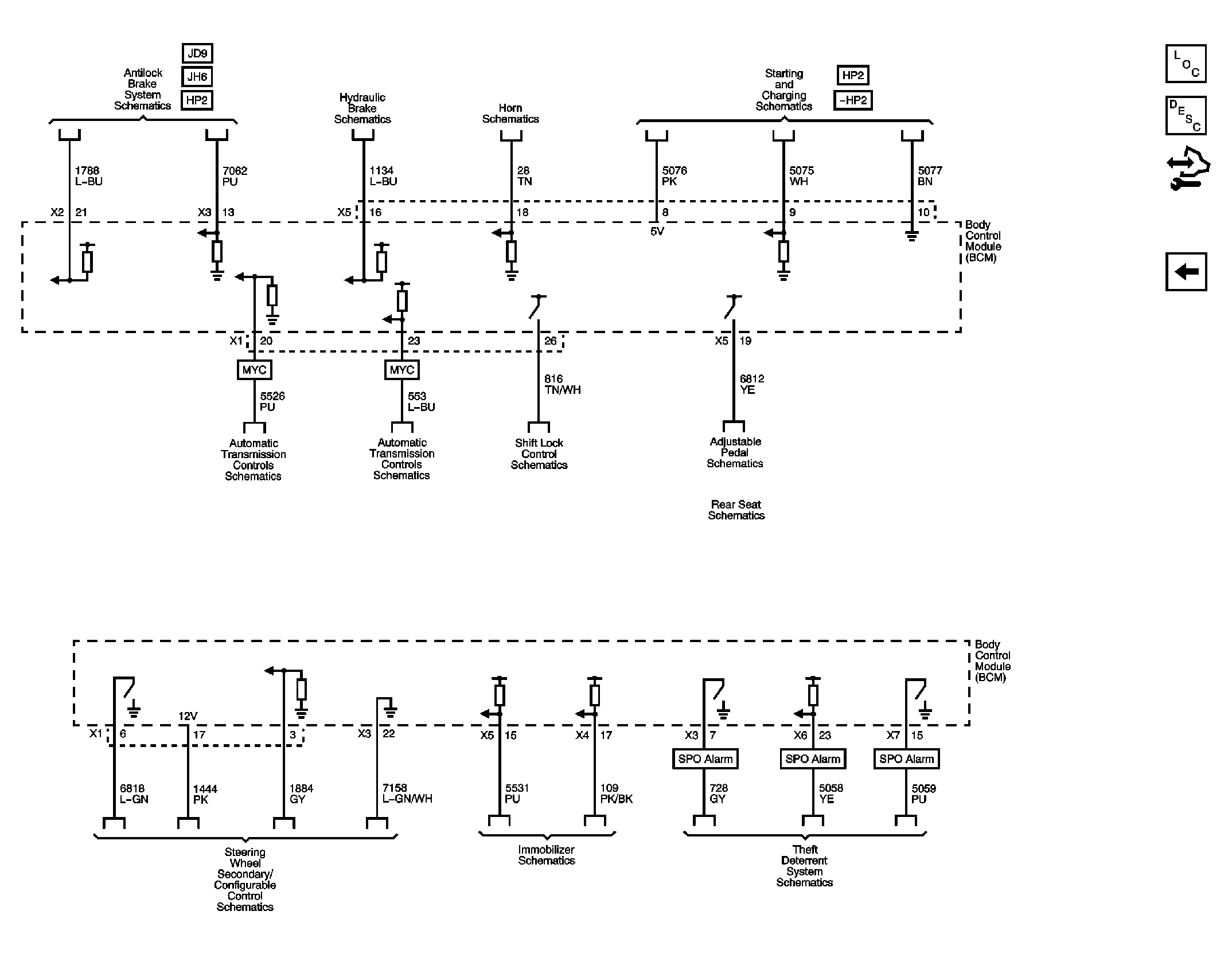

Fig 1: Brake, Horn, Transmission, Theft, and Secondary/Configurable Control References Wiring Schematic
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
