Electrical Component Locator - Ground Distribution Views
>>
Ground Views
>>
Engine Harness Grounds (HP2)
Engine Harness Grounds (HP2)
Engine Harness Grounds (HP2)
Component Name
Callout
G105
1
G103
2

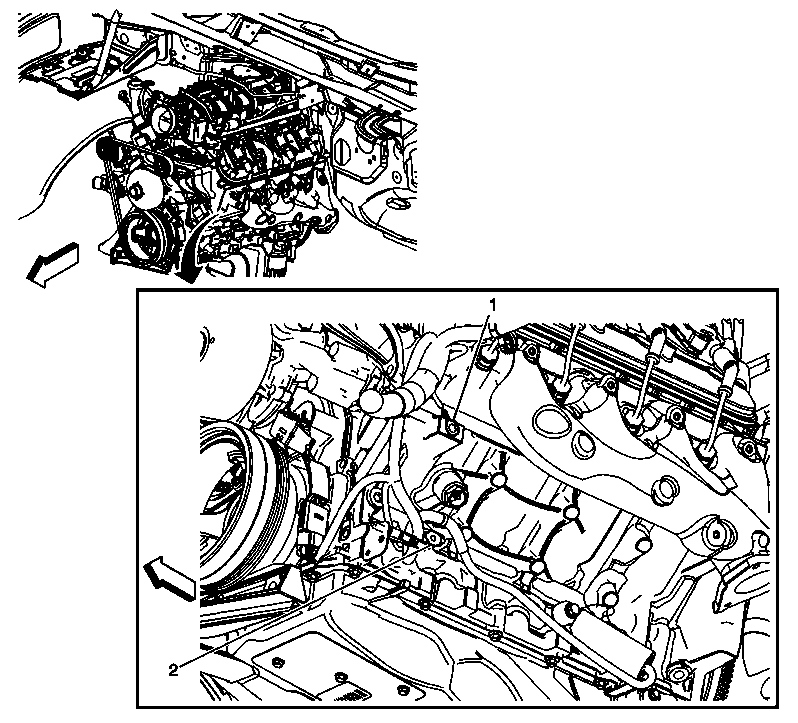

Fig 1: Engine Harness Grounds (HP2)
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
