Outside Rearview Mirror Wiring Schematics: Driver

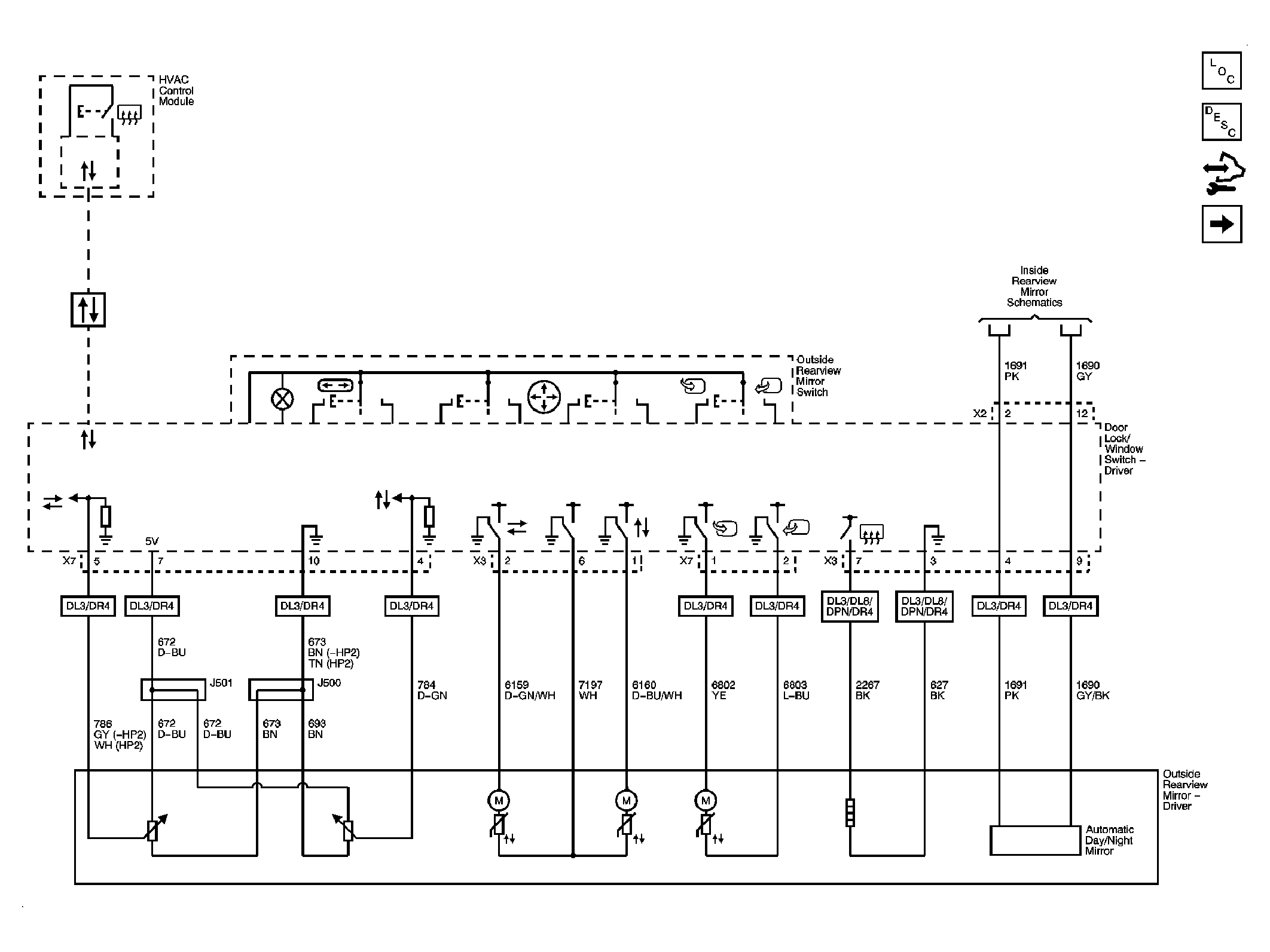

Fig 1: Driver Outside Rearview Mirror Wiring Schematic

GM2399190

Courtesy of GENERAL MOTORS CORP.
