Moveable Window Wiring Schematics: Right

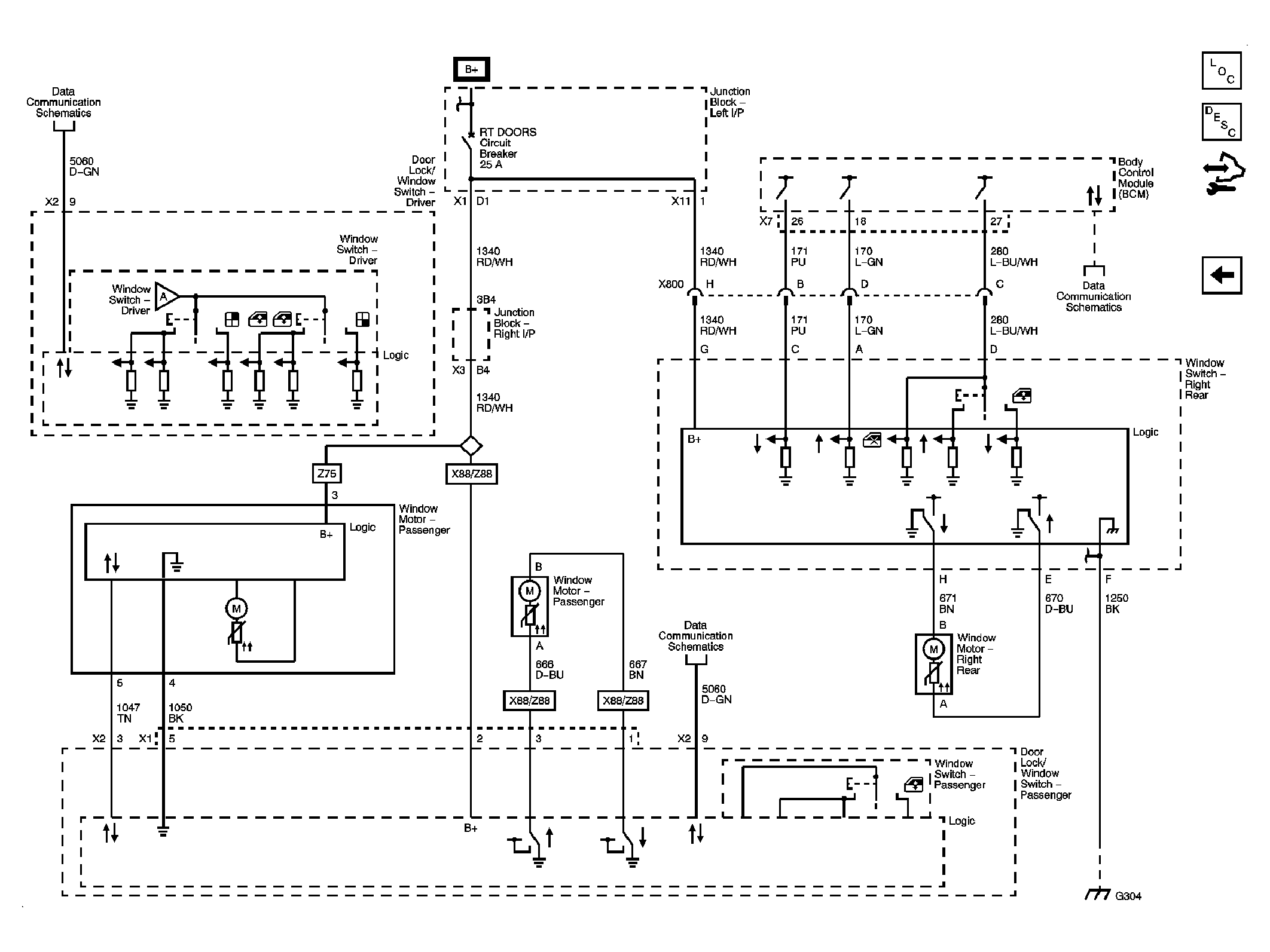

Fig 1: Right Wiring Schematic

GM2399178

Courtesy of GENERAL MOTORS CORP.
