Defogger Schematics: C49

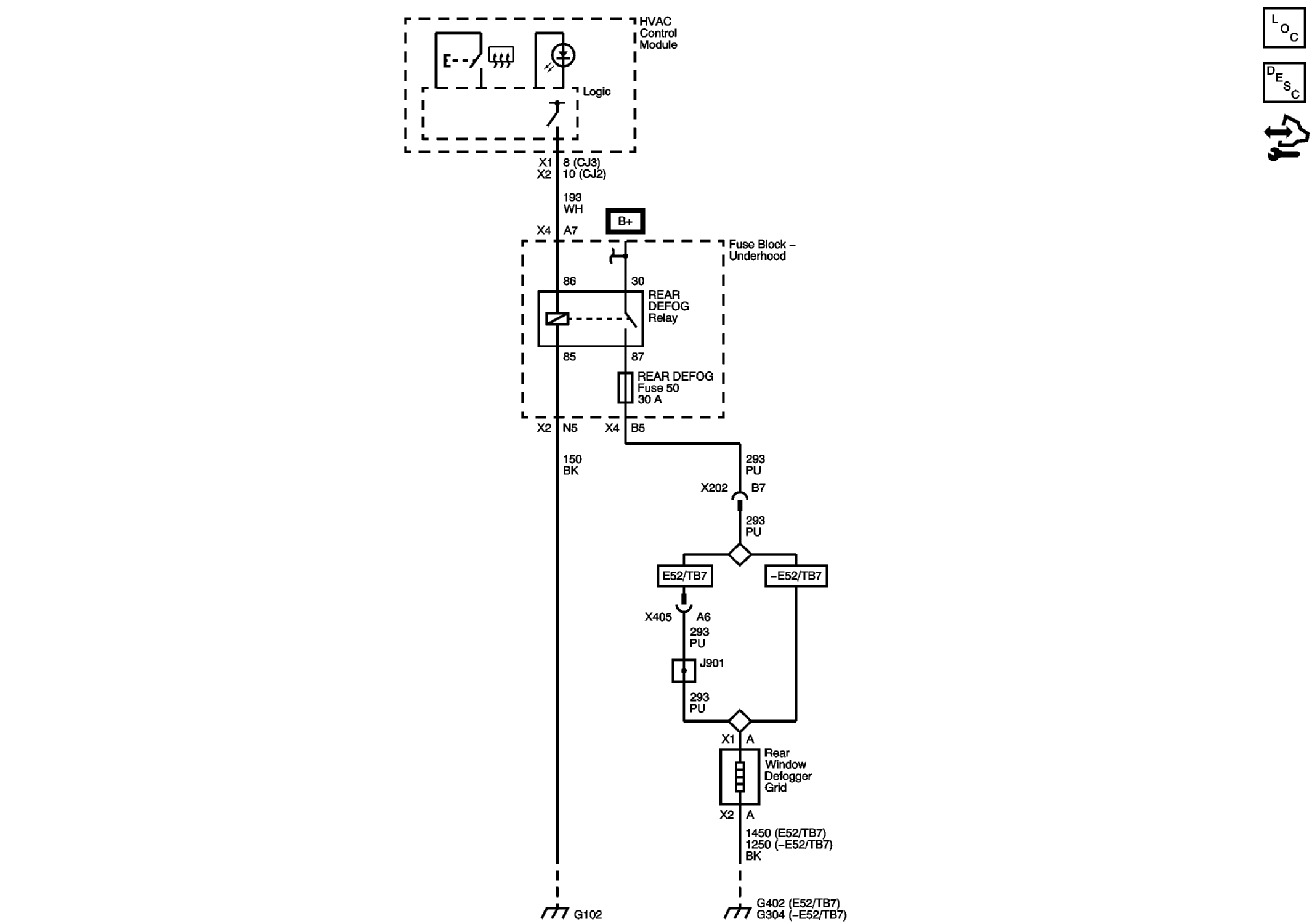

Fig 1: Defogger (C49) Wiring Schematic

GM2399823

Courtesy of GENERAL MOTORS CORP.
