Liftgate Pull Strap Replacement

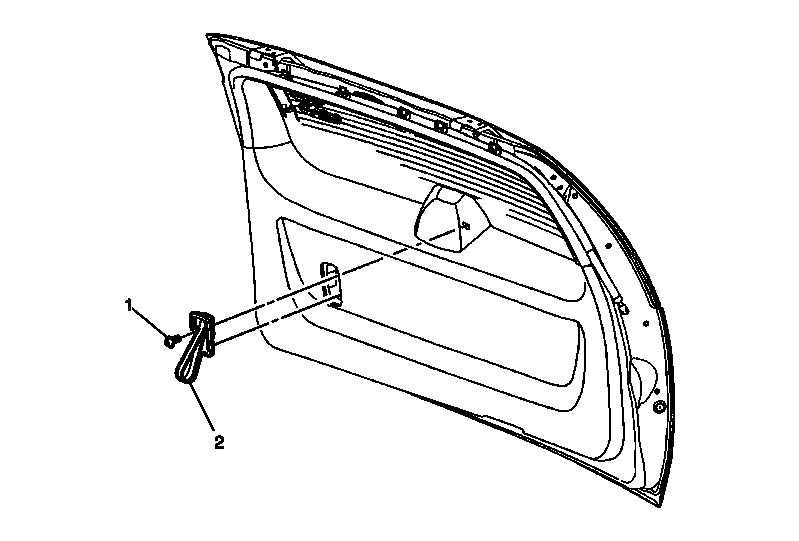

Fig 1: Liftgate Pull Strap
GM2403911Courtesy of GENERAL MOTORS CORP.
Liftgate Pull Strap Replacement

Callout Component Name
1 Liftgate Pull Strap Fastener
CAUTION:

Refer to Fastener Caution .
2 Liftgate Pull Strap Assembly
