Cruise Control Wiring Schematics
>>
Cruise Control
Cruise Control

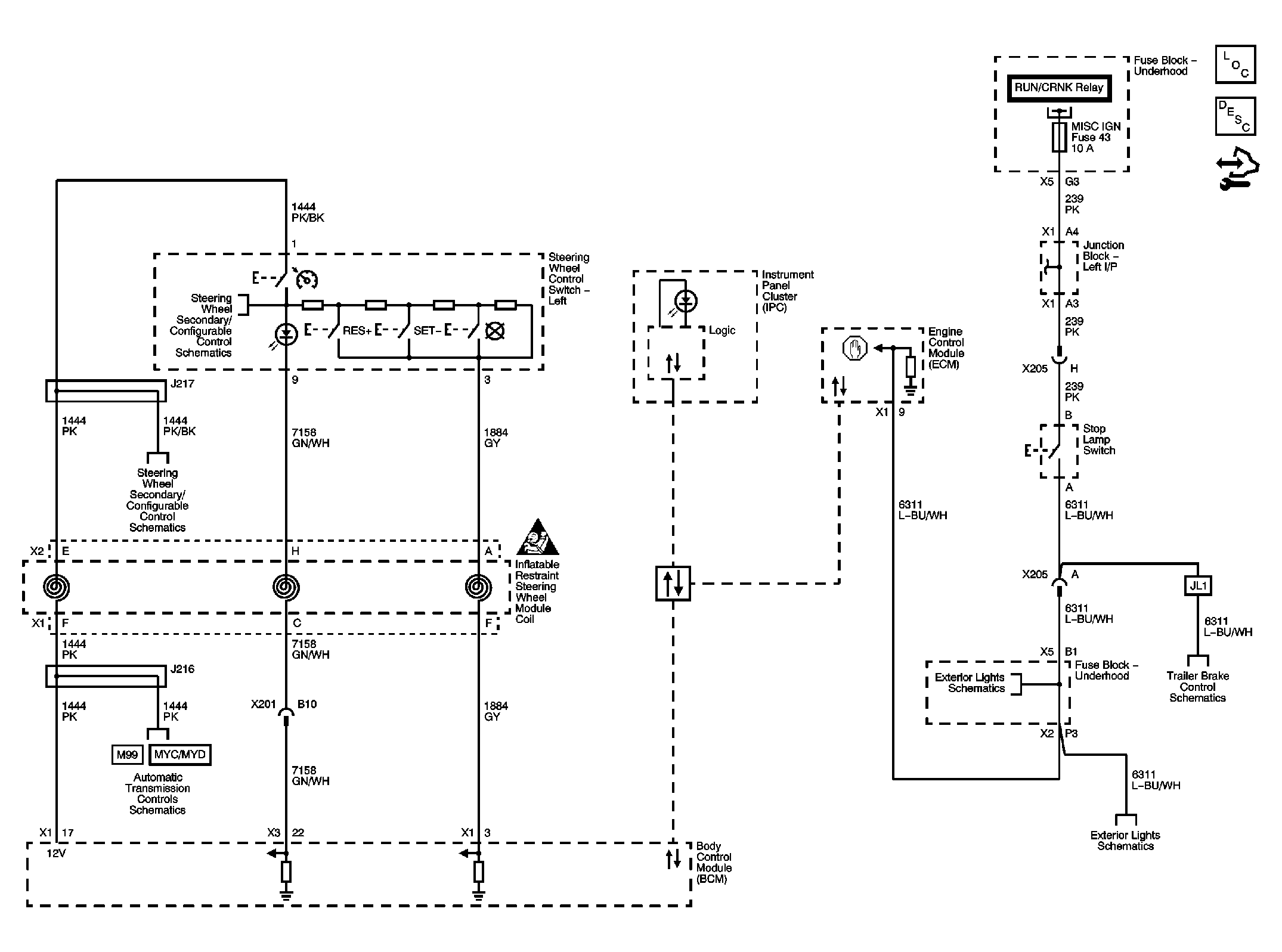

Fig 1: Cruise Control Wiring Schematic
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
