Body & Frame
>>
Seats
>>
Power Seat System
>>
Wiring Schematics
>>
Driver Seat Wiring Schematics
>>
Module Power, Ground, Serial Data, and Memory Switch
Module Power, Ground, Serial Data, and Memory Switch

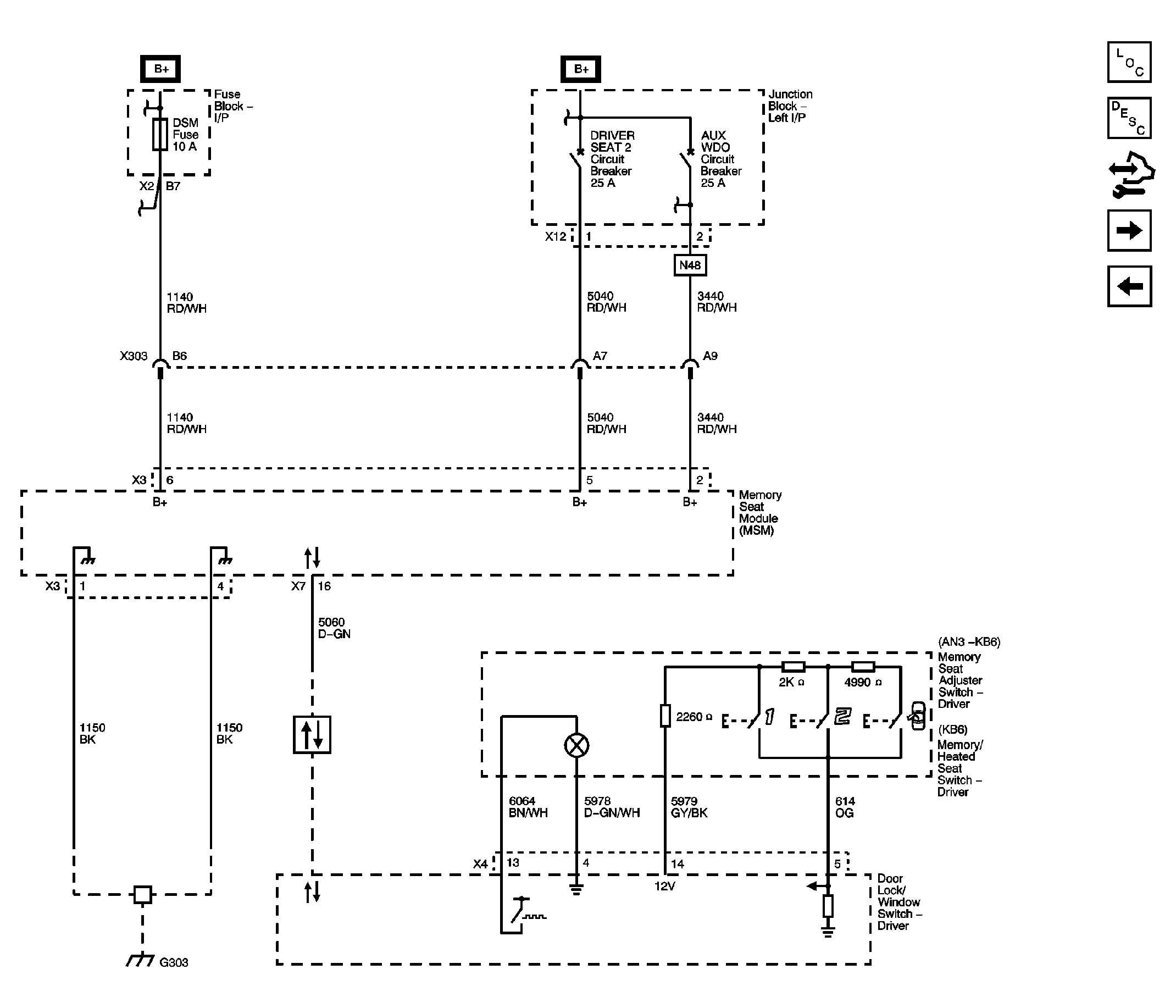

Fig 1: Module Power, Ground, Serial Data And Memory Switch Wiring Schematic
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
