Body & Frame
>>
Door Locks
>>
Power Door Lock System And Release Systems
>>
Wiring Schematics
>>
Door Control Module Schematics
>>
Power, Ground, and Serial Data
Power, Ground, and Serial Data

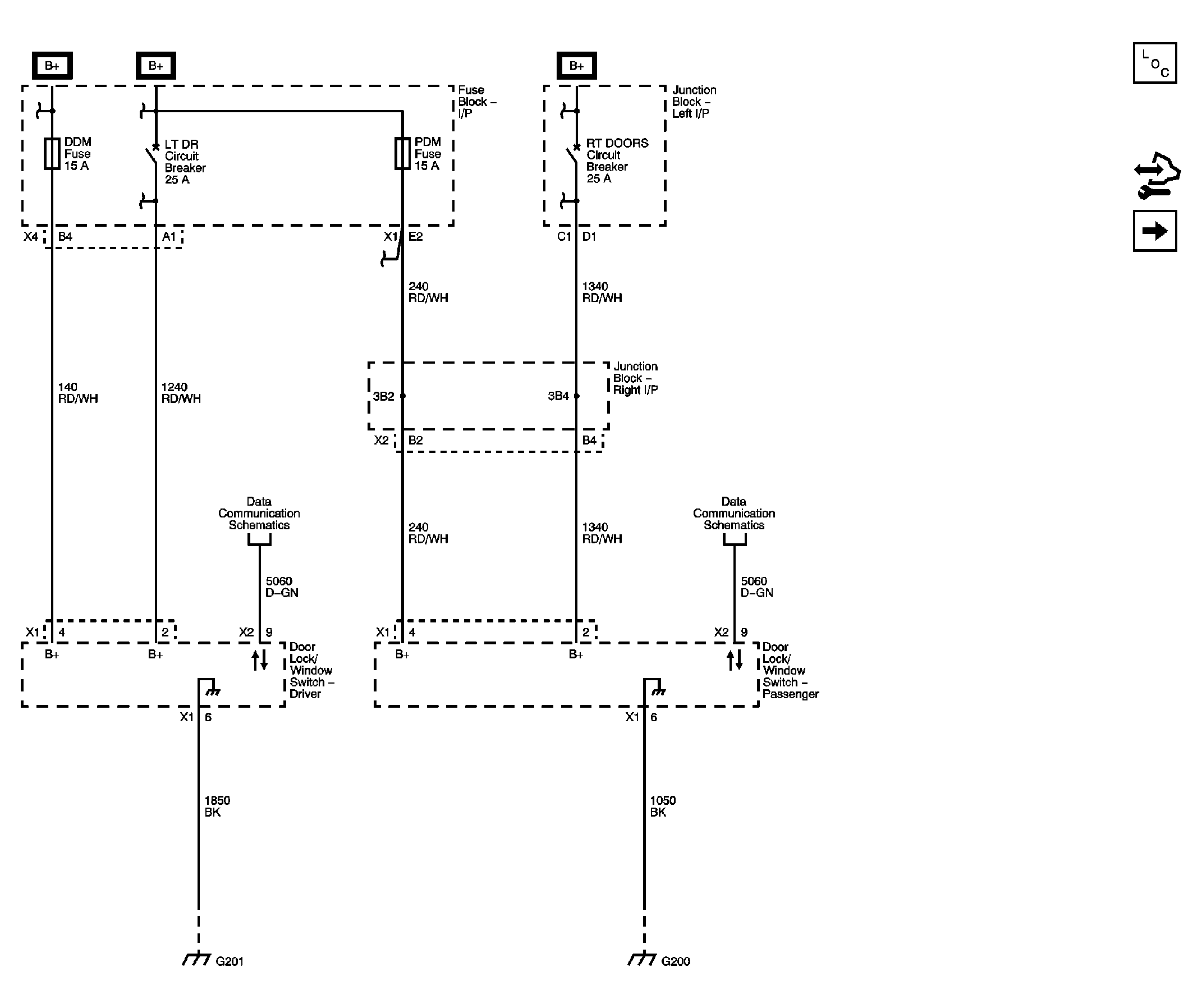

Fig 1: Power, Ground, and Serial Data Wiring Schematic
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
