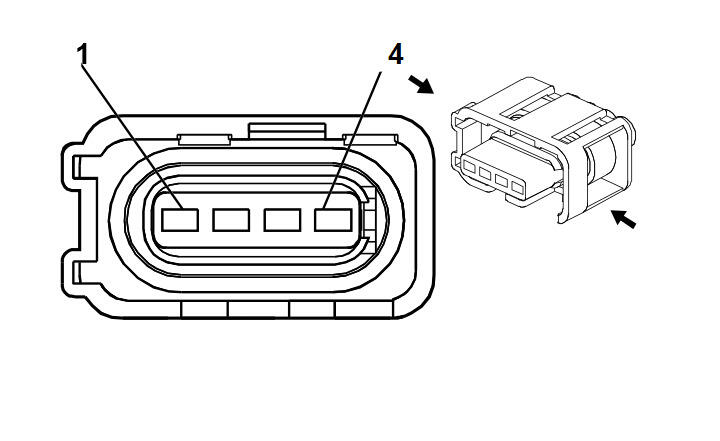

Liftgate Window Latch Assembly (E52)
Courtesy of GENERAL MOTORS CORP. Liftgate Window Latch Assembly (E52)
| Pin |
Wire |
Circuit |
Function |
| 1 |
0.35 L-BU |
6795 |
Liftglass/Trunk Motor Release Control 2 |
| 2 |
0.5 BK |
1450 |
Ground |
| 3 |
0.5 BK |
1450 |
Ground |
| 4 |
0.35 PK/BK |
1303 |
Liftgate Ajar Switch Signal (without E61) |
| 0.35 PU |
2279 |
Liftglass Ajar Switch Signal (E61) |
Connector Part Information
- Harness Type: Liftgate
- OEM Connector: 15489983
- Service Connector: 88988815
- Description: 4-Way F Timer Micro-Pack III Series Sealed (WH)
|
Terminal Part Information
- Terminated Lead: Service by Connector Assembly- 88988815
- Release Tool: J-38125-560
- Diagnostic Test Probe: J-35616-14 (GN)
- Terminal/Tray: Pins 1, 4- 4-969005-1/16
- Terminal/Tray: Pins 2, 3- 964274-2/16
- Core/Insulation Crimp: E/1
|
