Liftgate Actuator Switch (E61)

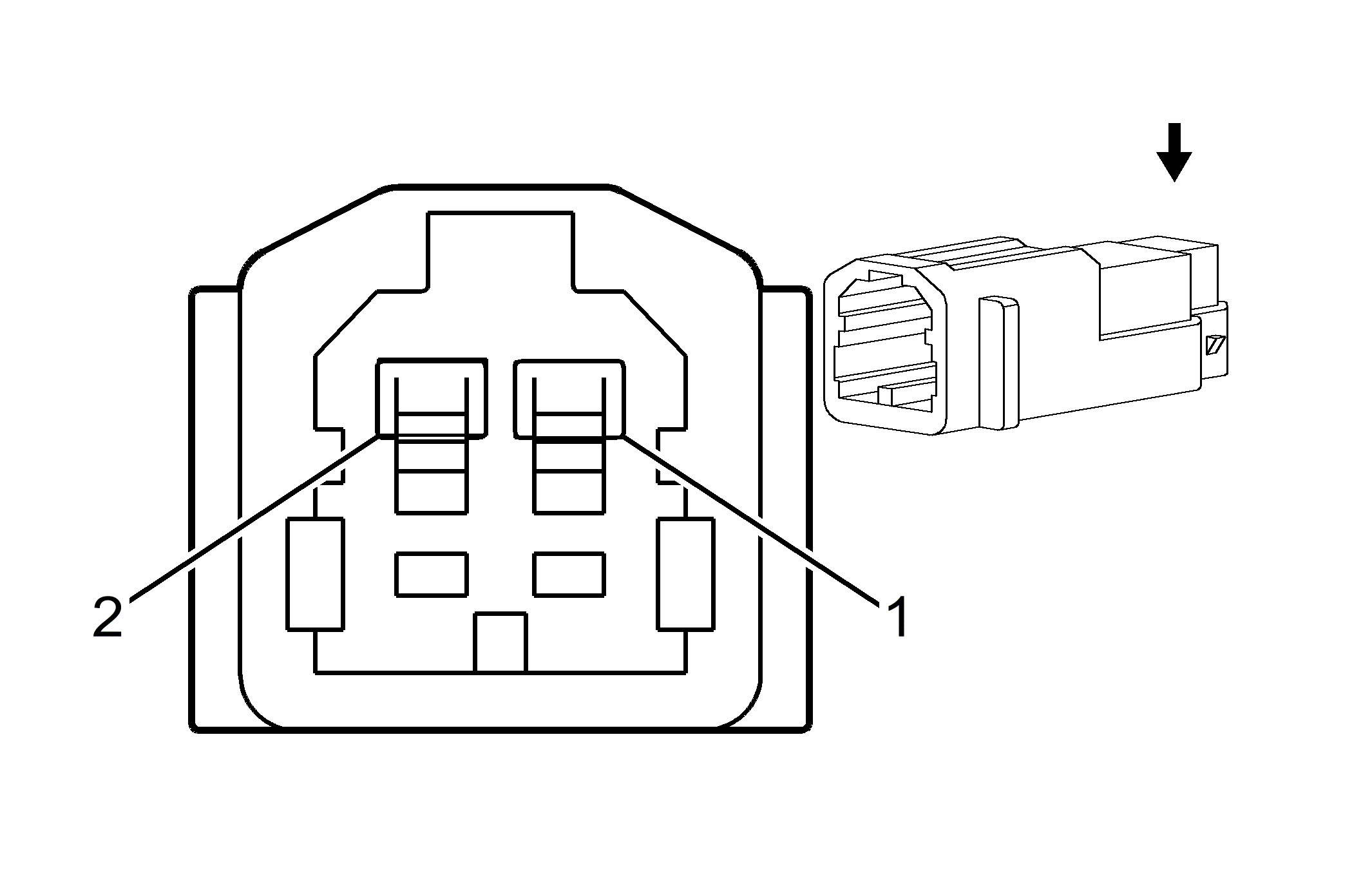

Fig 1: Liftgate Actuator Switch (E61) Connector End View
GM2187576Courtesy of GENERAL MOTORS CORP.
Liftgate Actuator Switch (E61)

Pin Wire Circuit Function
1 0.5 D-BU/WH 5796 Power Liftgate Open Switch Signal
2 0.5 OG 6117 Ground
Connector Part Information
  • Harness Type: Liftgate Actuator Assembly
  • OEM Connector: 174057-2
  • Service Connector: Service by Assembly- See Part Catalog
  • Description: 2-Way M 070 Series (BK)
Terminal Part Information
  • Terminal/Tray: Service by Component Assembly- See Part Catalog
  • Core/Insulation Crimp: Not Available
  • Release Tool/Test Probe: Not Available
